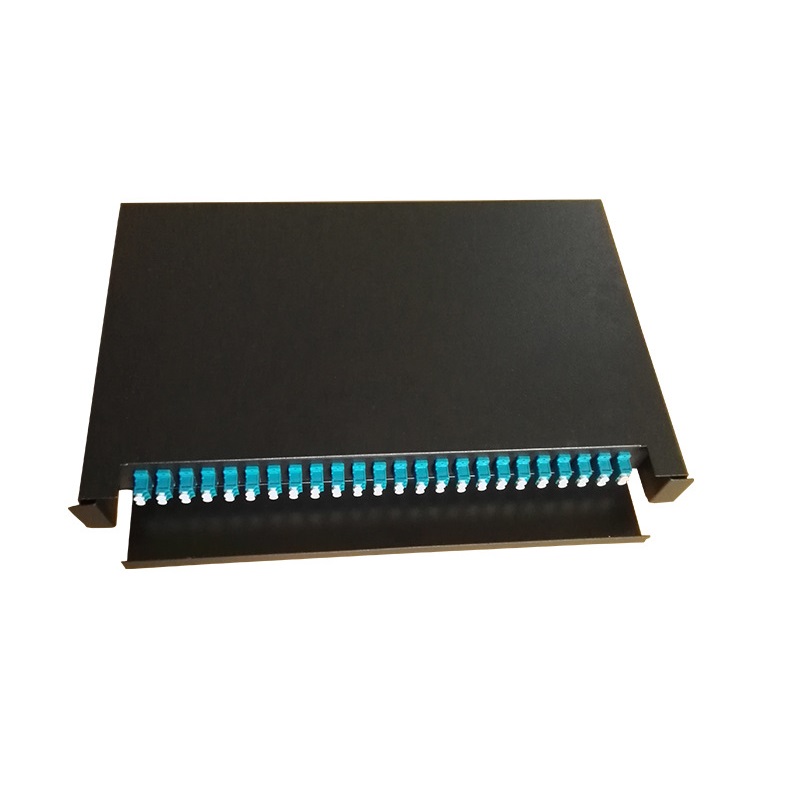

48-Core Fiber Optic Distribution Frame (ODF) - 1U 19-Inch Rack-Mounted Pull-Out 12-Port LC Fiber Termination Box
Description:
Chengdu Focus Infra Materials presents a high-performance 48-Core Fiber Optic Distribution Frame (ODF), a 1U 19-inch rack-mounted pull-out fiber termination box integrated with 12-port LC adapters, specifically engineered for telecom networks, data centers, enterprise backbones, and FTTH central office deployments. Designed for high-density fiber management, this pull-out ODF combines space efficiency, easy operation, and reliable performance, meeting the rigorous demands of carrier-grade network infrastructure.
Key Features:
1. 48-Core High-Density Design: Optimized for 48-core fiber termination, splicing, and distribution, integrated with 12-port LC adapters (duplex), maximizing fiber capacity in a compact 1U form factor, ideal for space-constrained 19-inch standard racks.
2. 1U 19-Inch Rack-Mounted: Fits standard 19-inch telecom racks and data center cabinets, saving installation space and facilitating centralized fiber management in core network and access network scenarios.
3. Pull-Out Modular Design: Equipped with a smooth pull-out tray, enabling easy access to fiber splicing, termination, and maintenance operations—no need to remove the entire ODF from the rack, significantly improving on-site work efficiency.
4. 12-Port LC Adapter Integration: Pre-installed 12-port LC duplex adapters (UPC/APC optional) ensure low insertion loss (≤0.2dB per port), stable signal transmission, and seamless compatibility with standard LC patch cords and fiber components.
4. Carrier-Grade Durability: Constructed with high-quality cold-rolled steel or reinforced engineering plastic, featuring excellent structural stability, EMI shielding, and corrosion resistance, suitable for long-term use in telecom rooms and data centers.
5. Efficient Fiber Management: Built-in fiber routing slots, splice trays, and cable fixing points, ensuring neat fiber arrangement, minimizing fiber bend damage, and simplifying splicing, patching, and inspection processes.
6. Universal Compatibility: Fully compatible with standard fiber optic splicing modules, patch cords, and connectors, adapting to various telecom network configurations and supporting future network expansion.
Applications:
Widely applied in telecom core networks, metro access rings, data center interconnections (DCI), FTTH central offices (CO), and enterprise fiber backbones. Suitable for 19-inch rack-mounted deployment in telecom rooms, data centers, and network operation centers (NOC), providing reliable 48-core fiber termination and distribution solutions for mission-critical network systems.
Chengdu Focus Infra Materials implements strict quality control throughout the production process, ensuring this 48-core 1U 19-inch pull-out ODF meets Telcordia GR-1081, IEC 61753, and RoHS standards. With its compact design, easy operation, and carrier-grade reliability, it is the ideal choice for telecom operators, system integrators, and data center managers seeking high-performance fiber management solutions.
