ABS box PLC splitter SC APC UPC Fiber Optic Splitter for FTTH Network
Description:
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

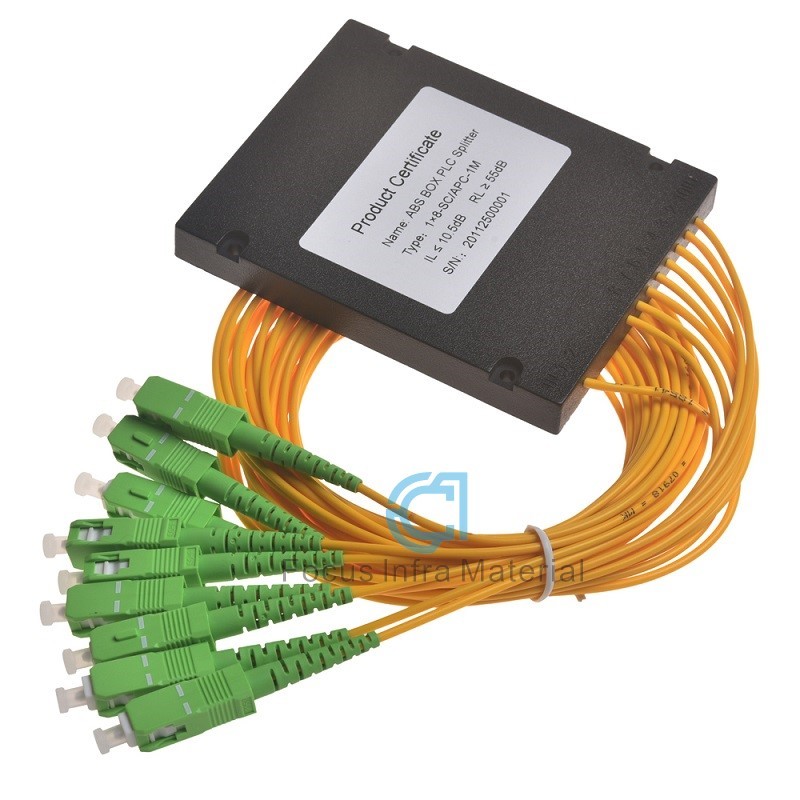

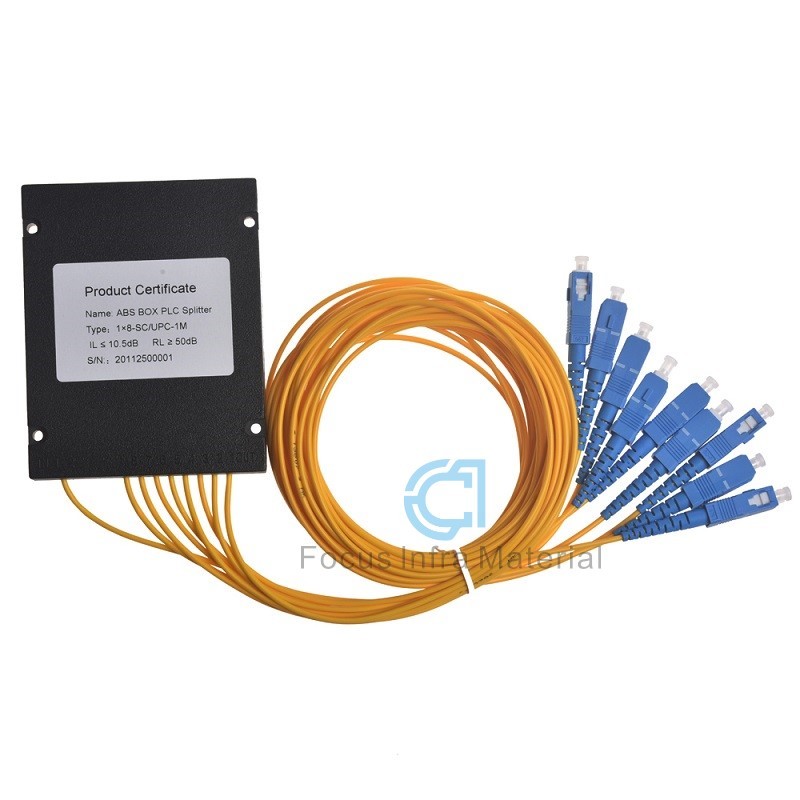

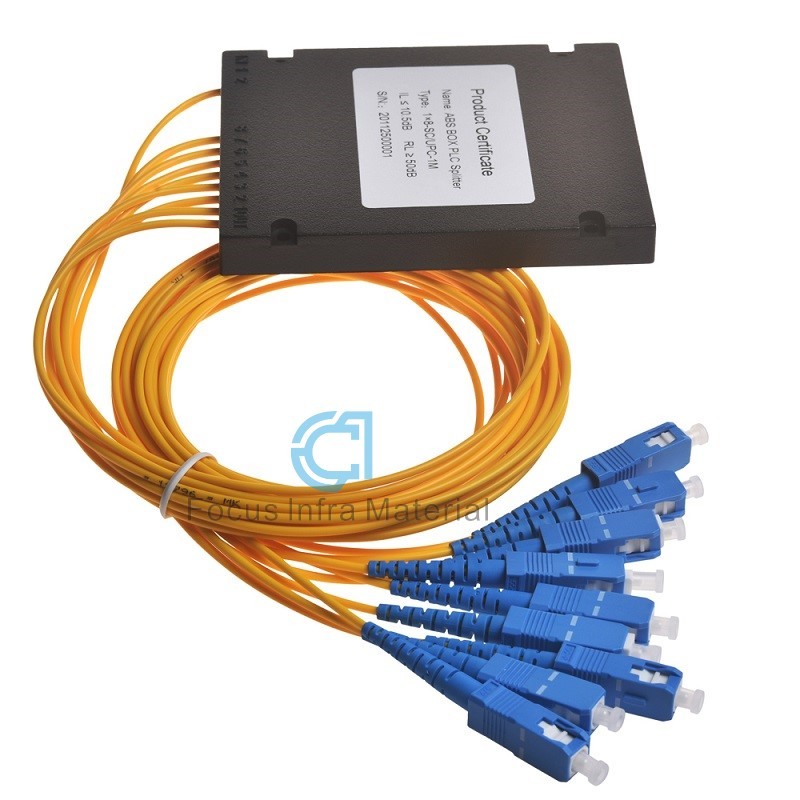

The ABS Box PLC Splitter, with its compact structure and tiny volume, is very easy to use and can be deployed in a variety of locations, including 19-inch racks, cross-connect cabinets, and other devices. The optical fiber splitter divides the fiber optic light into numerous sections at a specific ratio. The ABS module fiber optic splitter takes minimal distortion during usage due to its small form and bending insensitive cables, ensuring stable optical transmission.
Pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable insta llation, but its volume is relatively large. It's mainly used for various connection and distribution products (outdoor fiber distribution box) or network cabinets.
Chengdu Focus Infra Materials company is focus on fiber optic products, welcome to contact us for more details.
Fetures:
Good uniformity and low insertion loss
Low Polarization Dependent Loss
Excellent Environmental Stability
Excellent Mechanical
Housing, Split Ratio, and Connector Options can be Customized
Application:
Fiber to The Home (FTTH)
Passive optical networks (PON)
Local Area Networks (LAN)
Cable Television (CATV)
Test Equipment
| Parameter | Specification |
| Operating Wavelength (nm) | 1260 ~ 1650 |
| Type | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 |
| Insertion Loss (dB) Max. | ≤4.2 | ≤7.5 | ≤10.6 | ≤13.7 | ≤17.2 | ≤21 | ≤7.8 | ≤10.8 | ≤13.9 |
| Uniformity (dB) Max | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.5 | ≤1.0 | ≤1.5 | ≤2.0 |
| PDL(dB)Max | <0.2 | <0.2 | <0.2 | <0.3 | <0.3 | <0.4 | <0.3 | <0.3 | <0.4 |
| Directivity (dB) Min | 55 |
| Return Loss (dB) Min | 55(50) |
| Operating Temperature (°C) | -45~ +85 |
| Storage Temperature (°C) | -5~ +75 |
| Fiber length | 1m or custom length |
| Fiber Type | Corning G656A1 or Fiberhome G657A1 |
| Connector Type | Custom specified |
| Power Handling (mW) | 300 |
