FTTH Connector Hybrid Optical Adapter FC APC SC APC Wide Attenuation Range 0-30dB Adapter

325 Views

Name: Hybrid Fiber Optic Adapter
Model: FC APC to SC APC
Insertion Loss:＜0.2db
Return Loss: ＞50db
Use: FTTH, FTTX, FTTA, CATV, lAN'S

Get a Quote

Category :

Hybrid Fiber Optic Adapter

Description

FTTH Connector Hybrid Optical Adapter FC APC SC APC Wide Attenuation Range 0-30dB Adapter

Description

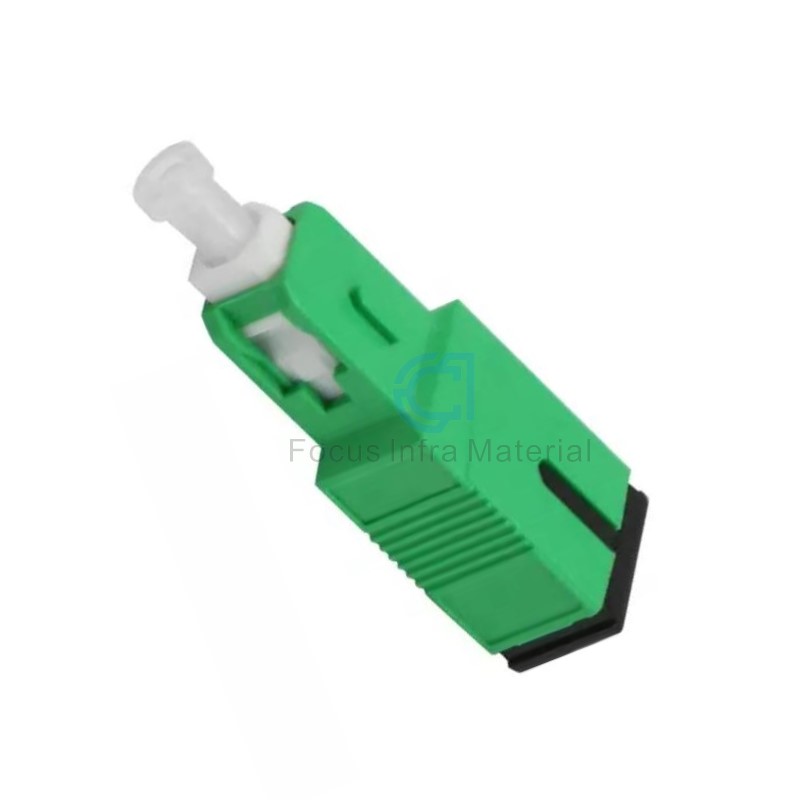

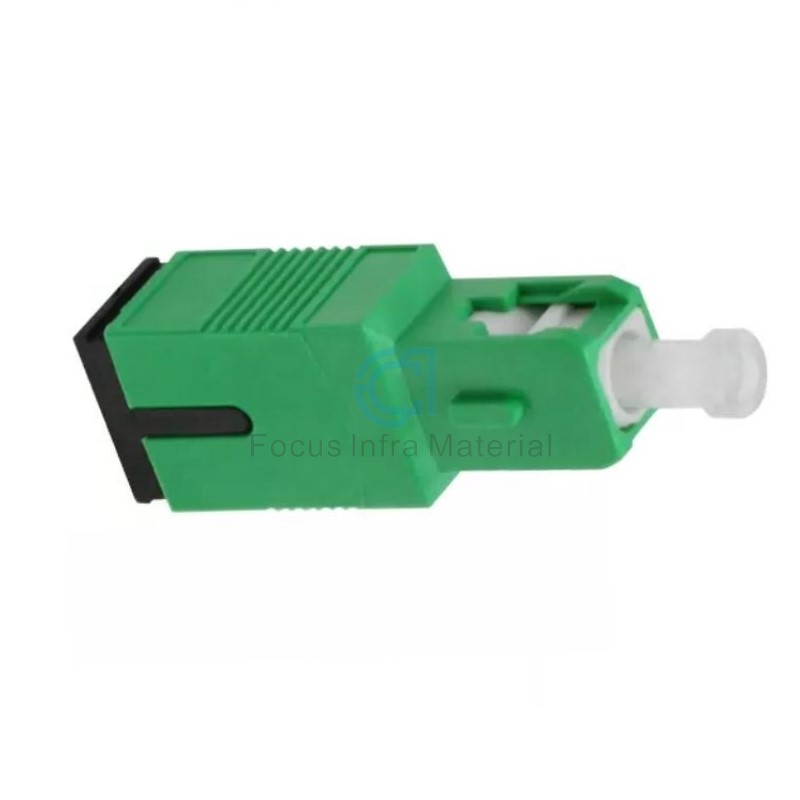

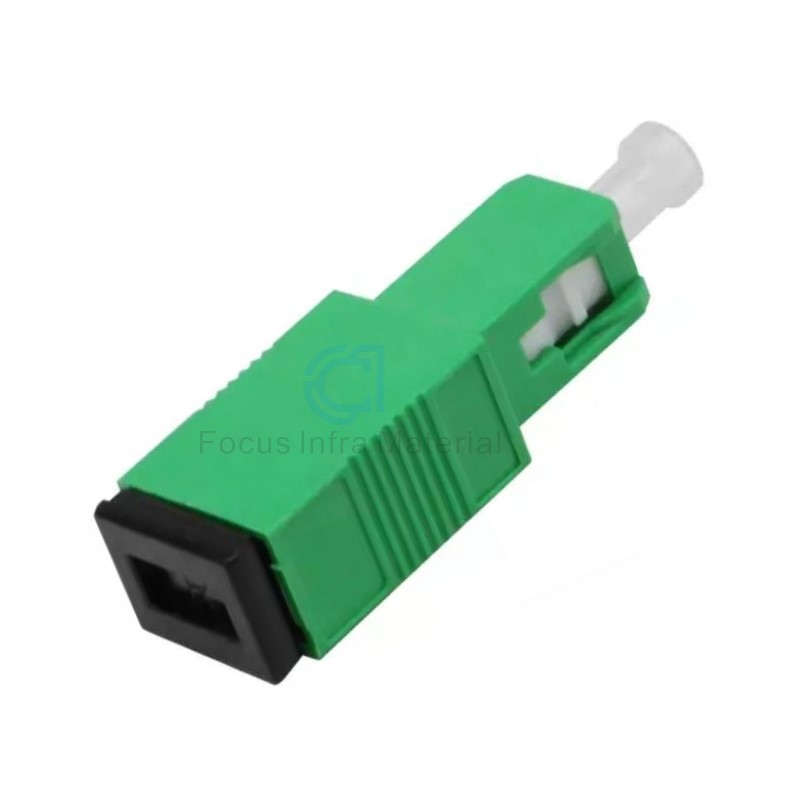

A hybrid variable fiber optic attenuator is available with an FC/APC connection on one end and an SC/APC connection on the other, offering an adjustable attenuation range of 0-30dB. These are used in FTTH (Fiber to the Home) systems to manage signal power. This component functions as a variable fiber optic attenuator, designed to reduce optical signal power to protect receivers or balance signal levels.

Chengdu Focus Infra Materials company is manufacturing a wide range of hybried fiber optic adapters to support different usage. Welcome to contact us for more details.

Feature	Detail
Connector Types	FC/APC and SC/APC (hybrid)
Attenuation Range	0-30dB (variable/adjustable)
Fiber Type	Singlemode (SM) is standard for APC polish
Wavelength	Suitable for 1310nm and 1550nm operation
Sleeve Material	High-precision Zirconia ceramic for reliable mating
Application	Widely used in optical fiber communication systems, FTTX networks, and test equipment
Insertion Loss	Typically low for the adapter portion (e.g., <0.3dB) before attenuation
Return Loss	High return loss (typically >50dB) due to APC polish, minimizing back reflection

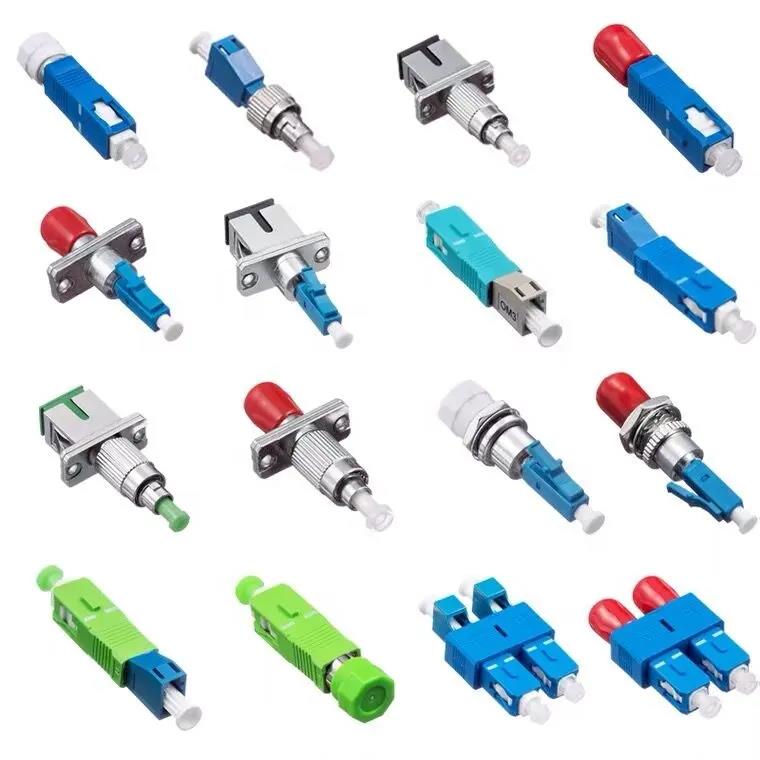

Fiber Optic Hybrid Adapter Coulper
