High Quality Fiber Patch Cable Quick Connector FTTH Fibra Optica SC/UPC APC Optic Fiber Fast Connector

2 Views

connector: sc apc 0.9 0.9mm 2.0mm 3.0mm connector
fiber type: fast connector lc lc-upc mm multimode
model: sc/pc fast connector
application: Wireless Lan, Wired LAN, wifi, 4g, 3G

Get a Quote

Category :

Fiber Optic Fast Connectors

Description

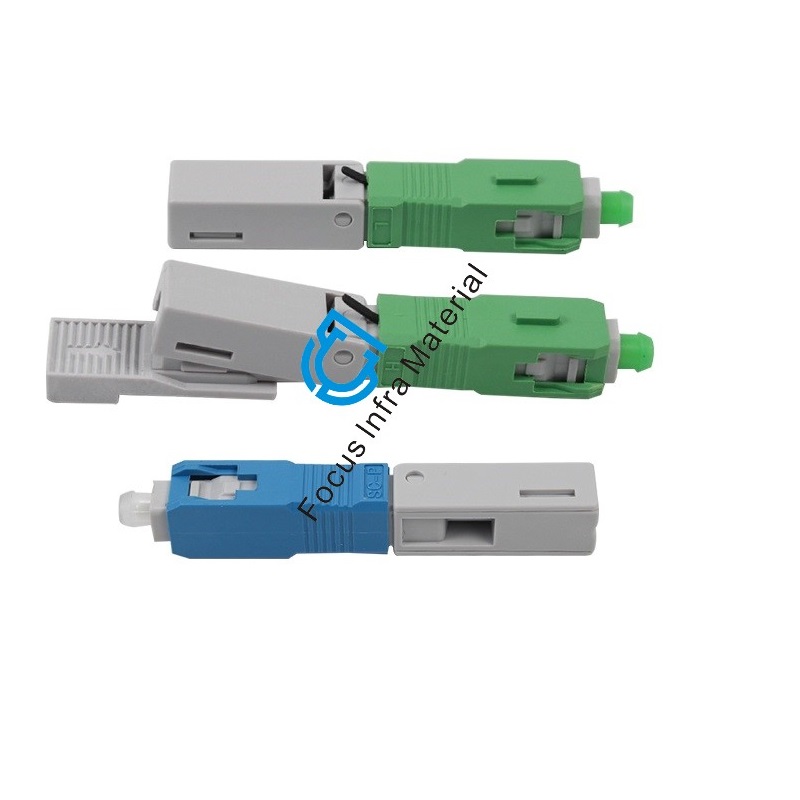

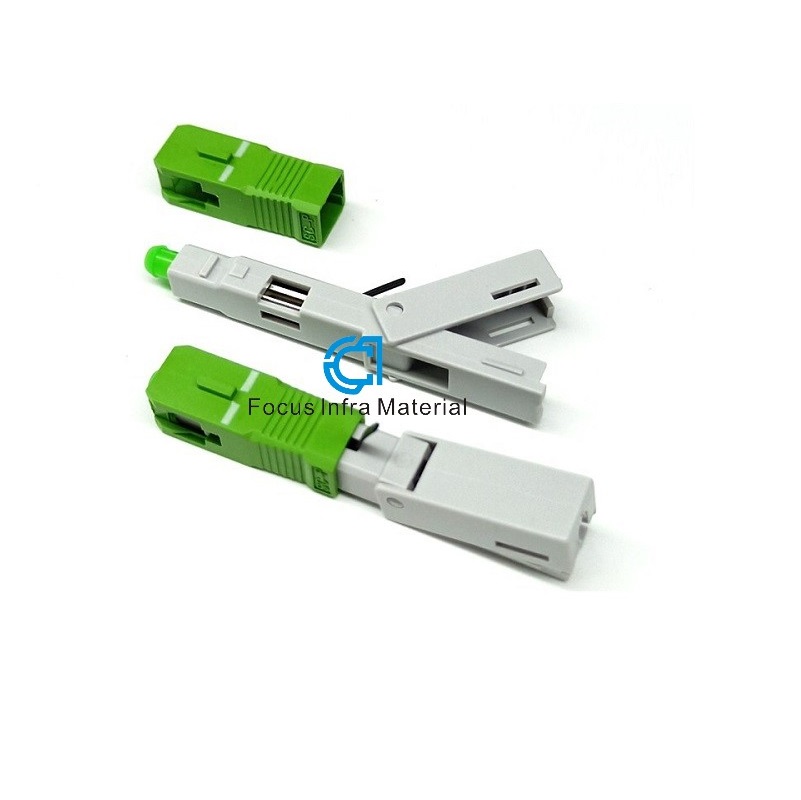

FTTH Fibra Optica SC UPC Optic Fiber Fast Connector

Description:

Fast connector are factory pre-polished field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and proprietary index matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fiber. Fast connectors are compatible with 250um and 900um optical fiber as well as 900um, 2mm, 3mm and drop cable cordage. Chengdu Focus Infra Materials company is manufacturing a wide range of fiber optic products to support Optial Distribution Network prohects. welcome to contact us for more details.

Quick Assembly SC fiber optic connector can provide quick and easy terminations of fibers in the field, and options are available for 900 micron and 250 micron. It allows the installer to terminate and make connection in minutes at equipment.and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens, with features of high installation quality, high success rate and high reliability.

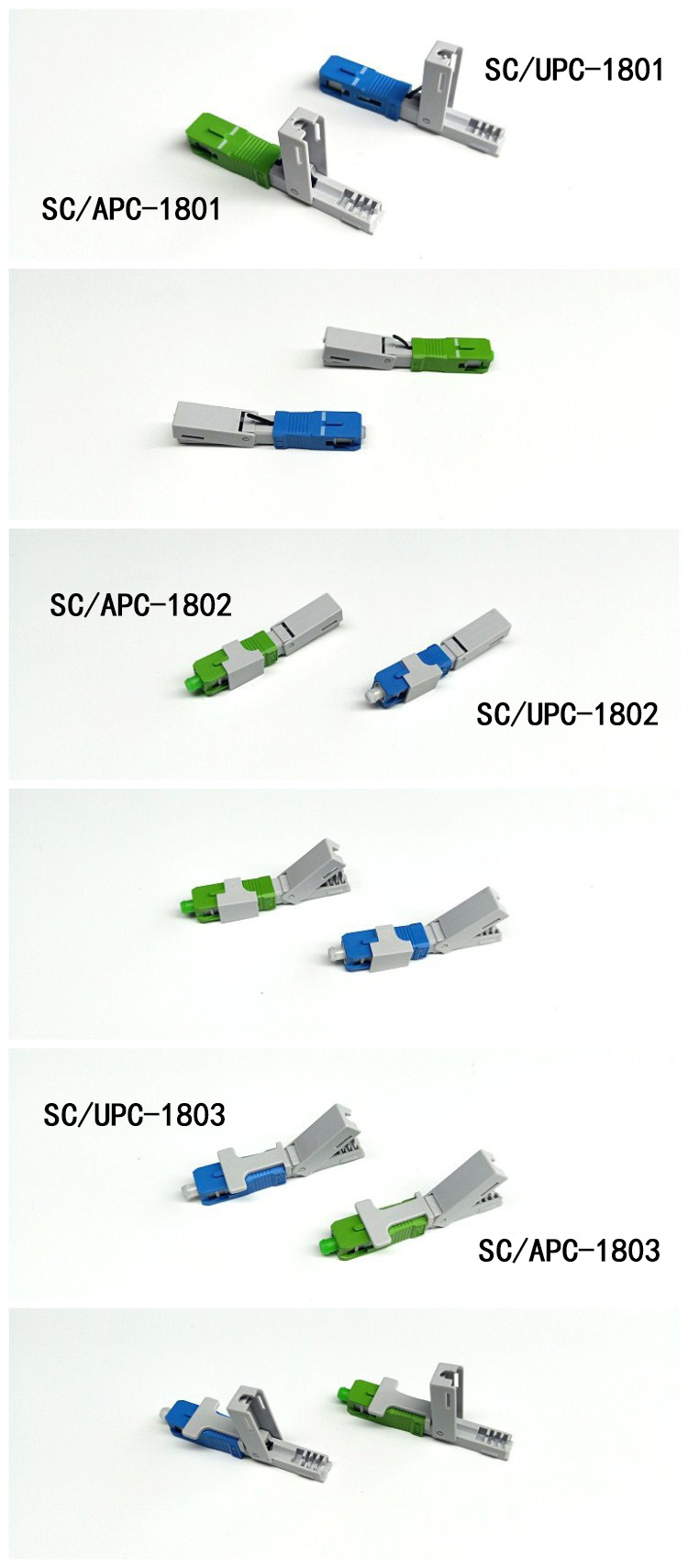

Fiber Optic Fast Connector Manufacture

Related Products

Blue Conector Rapido SC UPC FTTH 50mm Customizable OEM Fiber Optic Fast Connector Patch Cable Connector

Model Number: SC UPC Insertion Loss: ≤0.2dB Suit Cable Diameter: 0.9/2.0/3.0mm Application: FTTH FTTB FTTX Network

Chinese Manufacture High Quality FTTH Fast Connector Field Connector SM SC/UPC H13 53mm Fiber Optic Fast Connector

Model Number : SC/ UPC Suit Cable Diameter: 0.9/2.0/3.0mm fiber Patch Cord Durability: > 500 (Times) Application: FTTH FTTB FTTX Network

Chinese Factory High Quality Fiber Optic SC APC UPC Waterproof Quick Assembly Fast connector for FTTH Network

Model: SC APC SM SX Fast Connector Application: FTTH drop cable,CATV ,CCTV Diameters: 0.9mm, 2.0mm, 3.0mm, Others Insertion Loss: IL<0.2db Return Loss: > 55db

FTTH Network Components Factory Direct Supply Fiber Optic SC UPC Waterproof Quick Assembly Fast connector

Model: SC UPC SM SX Fast Connector Application: FTTH drop cable,CATV ,CCTV Diameters: 0.9mm, 2.0mm, 3.0mm, Others Insertion Loss: IL<0.2db Return Loss: > 55db

FTTH FTTB FTTX Single Mode SC Fast Connector OEM Indoor Outdoor Fiber Optic Cable Connector Quick Connector

Model: SC UPC SM SX Fast Connector Type: Single Mode Or Multi Mode Suit Cable Diameter: 0.9/2.0/3.0mm Ffiber Patch Cord Application: FTTH FTTB FTTX Durability: > 500 (Times)

FTTH Connector Factory Supply Optical Conector Rapido SC UPC FTTH Customizable OEM Fiber Optic Fast Connector

Model Number: SC UPC Insertion Loss: ≤0.2dB Suit Cable Diameter: 0.9/2.0/3.0mm Application: FTTH FTTB FTTX Network

Fiber Optic Jumper Cable Connector Factory Blue FTTH SC UPC Fiber Optic Fast Connectors 0.2dB For Network

Model Number: SC UPC Insertion Loss: ≤0.2dB Suit Cable Diameter: 0.9/2.0/3.0mm Application: FTTH FTTB FTTX Network

Outlet Durable Conector Rapido 50mm quick connector SC APC FTTH Fiber Optic Fast Connector

Name: SC/APC Fast Connector IL.: ≤0.3DB RL.: ≥55DB Use: fiber connecting, FTTH
