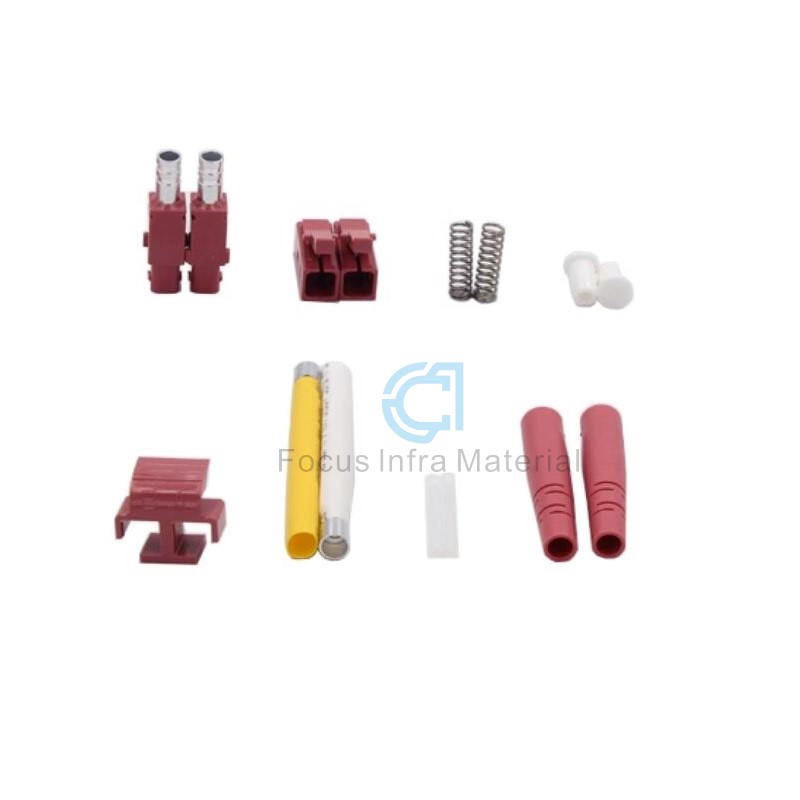

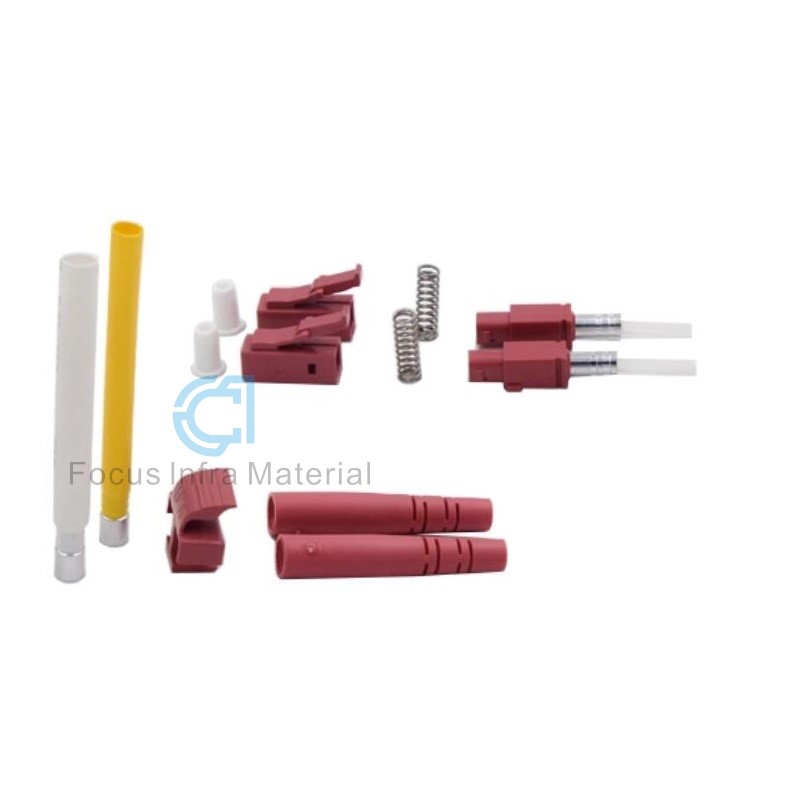

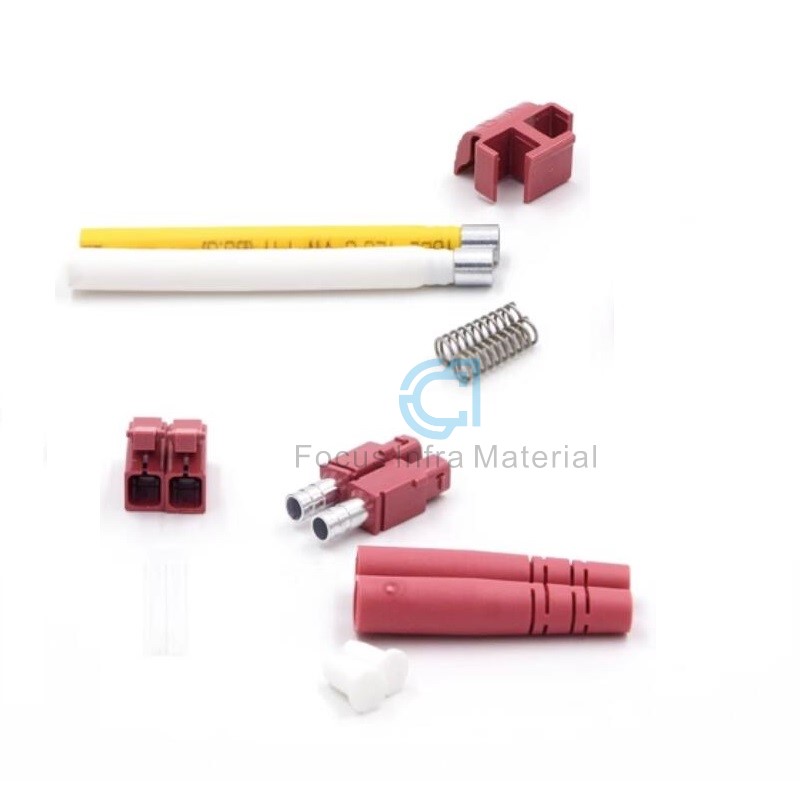

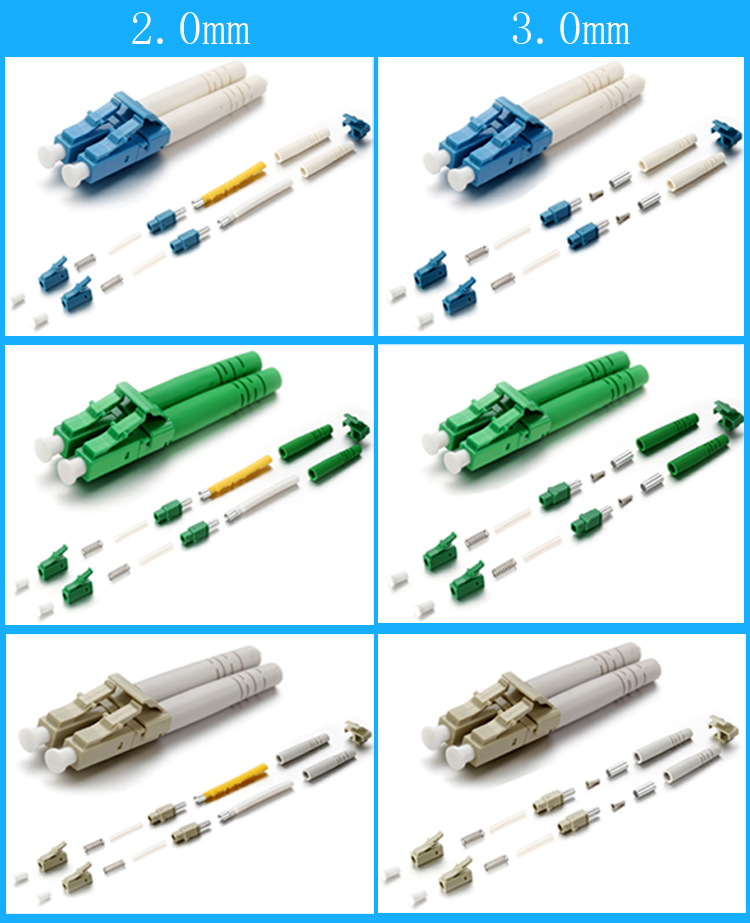

LC PC Om4 2.0mm 3.0mm Duplex Fiber Optical Connector Plastic Parts
Description
The optical fiber connector is one of the most basic passive components in the optical fiber communication. There are difference ferrule materials (ceramic, plastic, metal),
a variety of body and boot color to choose. Through the process of curing and polishing, etc., the connector is combined with various of fiber optic cable and made into
different kinds of patchcord (jumper), which have been widely applied to the CATV system, communications system, FTTX system, Local Area Networks, Wide Area Networks, Metro,Test equipment, Active device termination and so on.
Chengdu Focus Infra Materials Company is manufacturing a wide range of products in fiber telecom industry, welcome to contact us at yuki.hecy@cdfocusinfra.com for more details.
Technical Parameter
| Fiber Type | SM | MM |
| Connector Type | SC,FC,ST,E2000,LC,MU,DIN | MTRJ | SC,FC,ST,E2000,LC,MU | MTRJ |
| Insertion Loss(Typical) | ≤ 0.2dB | ≤ 0.4dB | ≤ 0.2dB | ≤ 0.4dB |
| Insertion Loss(Max) | ≤ 0.3dB | ≤ 0.5dB | ≤ 0.3dB | ≤ 0.5dB |
Return Loss(Typical) | PC ≥ 50dB | ≥ 35dB | - |
| UPC ≥ 55dB | - | - |
| APC ≥ 65dB | - | - |
| Durability(500ºC) | 0.2dB |
| Temperature Stability | 0.3dB |
| Operation Temperature | -40ºC~+85ºC |
| Storage Temperature | -40ºC~+85ºC |
Application1. CATV2. Telecom Network3. Metro4. Data processing
Features1. Low insertion Loss and Back reflection loss2. RJ-45 style interface3. Polarized and color coded (TIA568-A&ISO 11801)4. UL-rated plastic housing and boot5. Compact, pull-proof design6. Behind-the-Wall style short connector
