Fiber Optic Adapter Supplier FTTH SC APC Simplex Subscriber Fiber Optic Adapter SM SX Coupler

12 Views

Model Number: SC/APC
Insertion Loss:＜0.2db
Return Loss: ＞50db
Use: FTTH, FTTX, FTTA, CATV, lAN'S

Get a Quote

Category :

SC Fiber Optic Adapter

Description

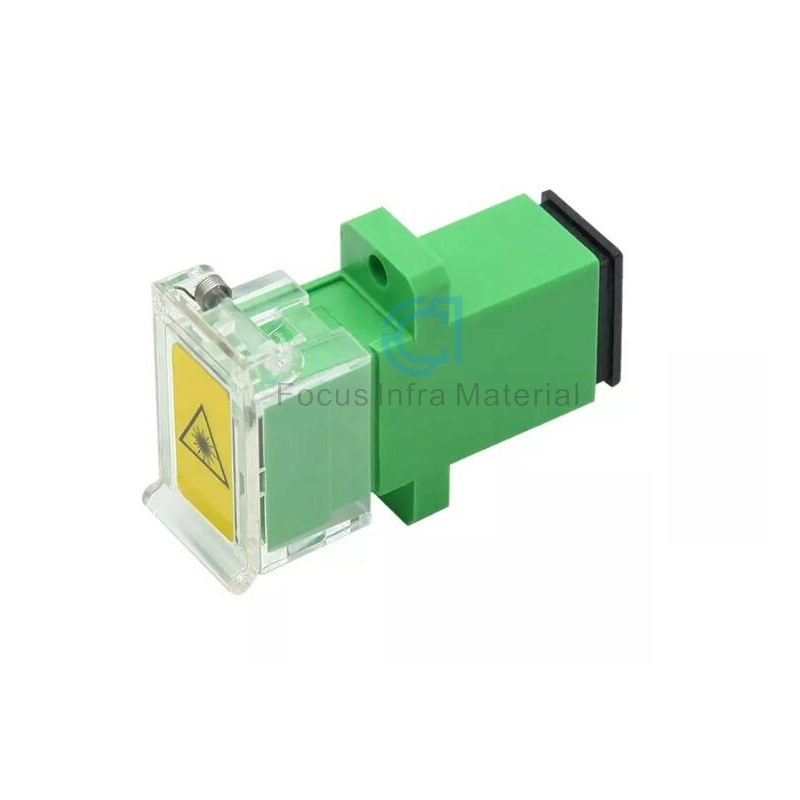

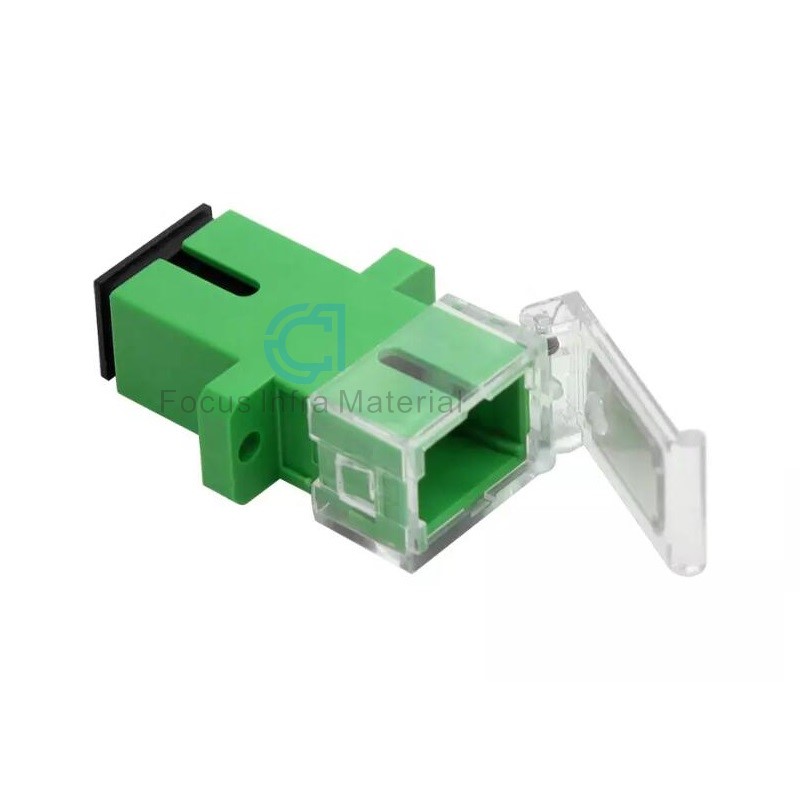

SC APC Simplex Subscriber Fiber Optic Adapter SM SX Coupler

Description:

Focus Infra's Optical Fiber SM SX SC APC with Flange Fiber Optic Coupler is used for Single Mode Fiber Connection. The "SC" connector is a standard square connector, using engineering plastics, which has the advantages of high temperature resistance and not easy to oxidize. The optical interface on the transmission equipment side generally uses an SC connector. The Fiber Optic Coupler is a device for detachable (movable) connection between an optical fiber and an optical fiber.

SC type is an optical fiber connector developed by NTT Corporation of Japan. Its shell is rectangular, and the structural dimensions of the pins and coupling sleeves used are exactly the same as those of the FC type. Among them, the end face of the pin mostly adopts the PC or APC type grinding method; the fastening method is the plug-in latch type, without rotation. This type of connector is cheap, easy to plug and unplug, small fluctuations in insertion loss, high compressive strength, and high installation density.

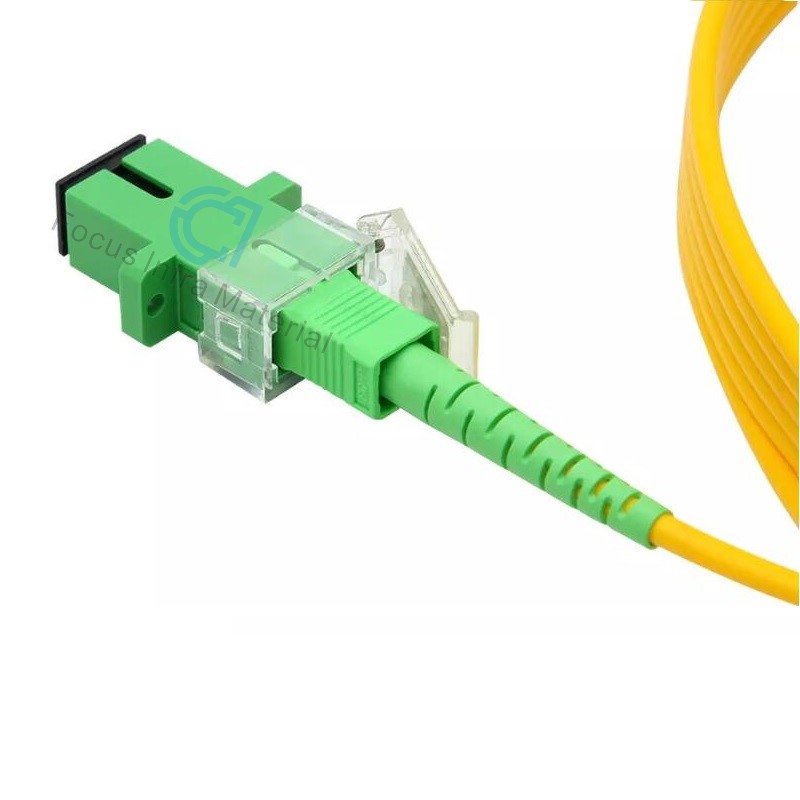

It can be used with fiber optic patch cords, which send high-speed data through a network. The adapter is a part of the optical path, it guarantees the stability of transmission parameters, and high-quality ceramic ferrule assures lower return loss.

Features:

1.Excellent Optical Performance

2.Percision Aligment Ceramic sleeve

3.Extraordinary Stability
