SC UPC OM4 SX Simplex Network Connector Fiber Optic Coupler Fiber Optic Adapters SC Converter Fiber Connection

11 Views

Model Number: SC UPC OM4 SX
Insertion Loss:	<0.2db
Return Loss: >50db
Metal Clips: With Metal Clips, Without Metal Clips

Get a Quote

Category :

SC Fiber Optic Adapter

Description

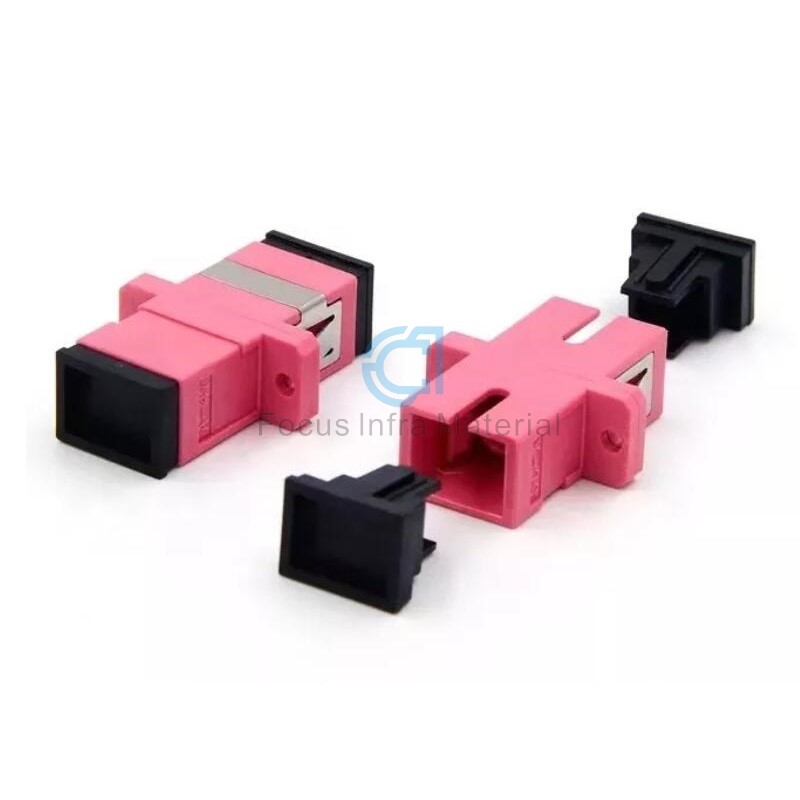

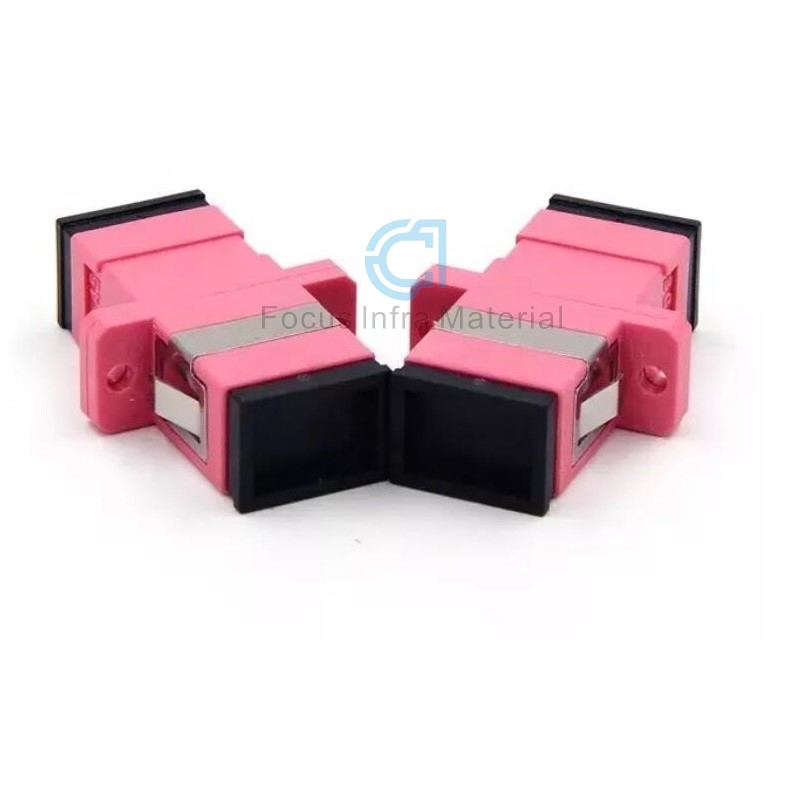

OM4 Fiber Optic Adapters SC Converter Fiber Connection

Description:

The optical fibers are connected by the adapter through the internal open sleeve to ensure the highest connection performance between the optical fiber connectors. In order to be fixed on various panels, a variety of fine fixing flanges are also designed. According to the different fiber optic connectors, the fiber optic adapter can provide the corresponding adapter parts for the fiber optic connector.

The "SC" connector is a standard square connector, using engineering plastics, which has the advantages of high temperature resistance and not easy to oxidize. The optical interface on the transmission equipment side generally uses an SC connector. "PC" is the most widely used in telecom operators' equipment, and its joint cross-section is flat. The attenuation of "UPC" is smaller than that of "PC", and it is generally used for equipment with special needs. Some foreign manufacturers use FC/UPC for internal fiber jumpers in ODF racks, mainly to improve ODF equipment's own indicators.

Feature:

1. Fiber optic adapter LC
2. Apply for CATV, LAN, Telecom network, test equipment, LC connectors
3. Multimode or Single Mode, OM3,OM4 available
4. Ceramic sleeve, ABS housing
5. Insertion Loss≤ 0.2dB, Return Loss≥ 45dB (pc), ≥ 60dB (apc)
6. Operating temp.: -40° C~+85° C
7. Standard plugging force: 2~6N
8. Durability > 1000 times
9. Color: Blue (pc/SM), Green (apc), Beige (pc/MM), Acid blue (OM3),Purple(OM4)

Specification:

Type		Insertion loss(db)	Tensility resist(g)	Inser and pull times	Temperature(℃)
FC	PC	< 0.2	200-600	1000	-40-+80
FC	APC	< 0.2	200-600	1000	-40-+80
SC	PC	< 0.2	200-600	1000	-40-+80
SC	APC	< 0.2	200-600	1000	-40-+80
ST		< 0.2	200-600	1000	-40-+80
LC		< 0.2	200-600	1000	-40-+80
MU		< 0.2	200-600	1000	-40-+80
MIRJ		< 0.2	200-600	1000	-40-+80
E-2000		< 0.2	200-600	1000	-40-+80
FC-SC		< 0.2	200-600	1000	-40-+80
FC-ST		< 0.3	200-600	1000	-40-+80
SC-ST		< 0.2	200-600	1000	-40-+80
