Fiber Optical Adapter Metal Adapter SC APC SM SX Coupler

17 Views

Name: SC APC Fiber Optic Adapter
Model Number: SC/APC
Insertion Loss:＜0.2db
Return Loss: ＞50db
Use: FTTH, FTTX, FTTA, CATV, lAN'S

Get a Quote

Category :

SC Fiber Optic Adapter

Description

Description:

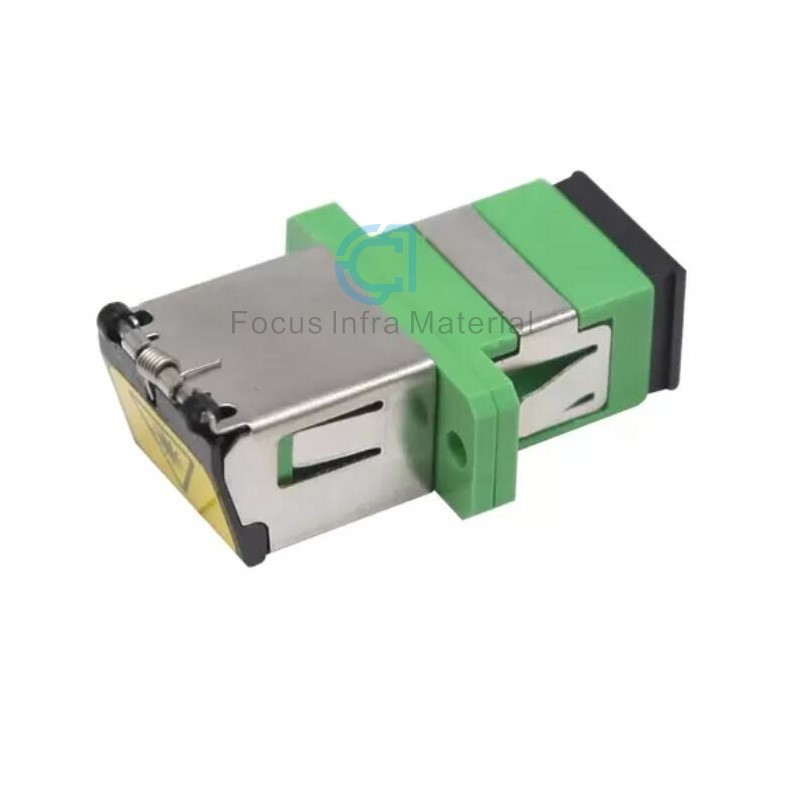

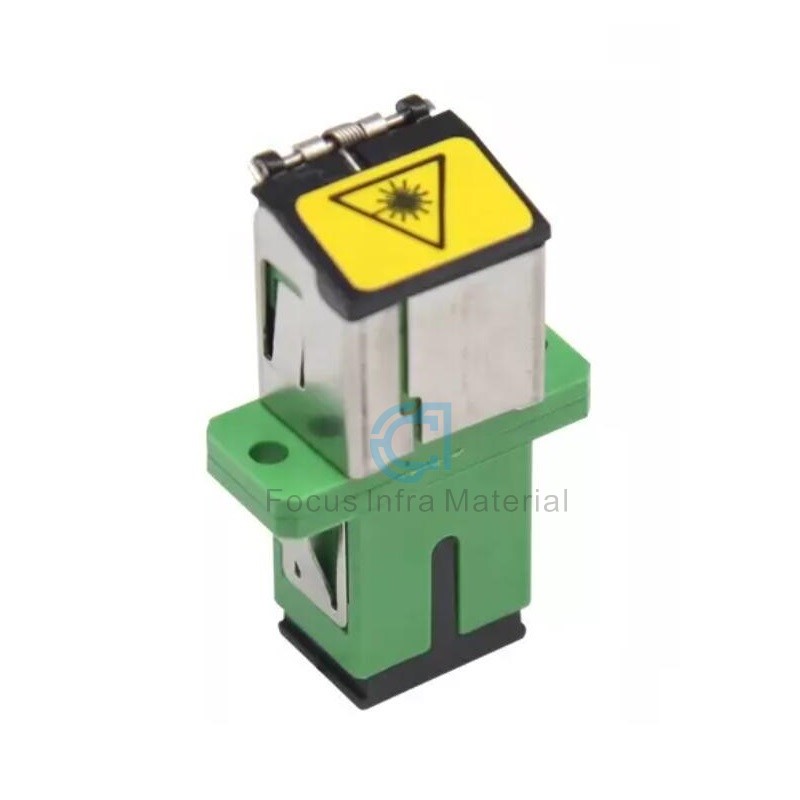

Focus Infra's Fiber Optical Adapter Metal Adapter SC APC SM Simplex Coupler is used for Single Mode Fiber Connection. The "SC" connector is a standard square connector, using engineering plastics, which has the advantages of high temperature resistance and not easy to oxidize. The optical interface on the transmission equipment side generally uses an SC connector. The Fiber Optic Coupler is a device for detachable (movable) connection between an optical fiber and an optical fiber.

Specification:

Type		Insertion loss(db)	Tensility resist(g)	Inser and pull times	Temperature(℃)
FC	PC	< 0.2	200-600	1000	-40-+80
FC	APC	< 0.2	200-600	1000	-40-+80
SC	PC	< 0.2	200-600	1000	-40-+80
SC	APC	< 0.2	200-600	1000	-40-+80
ST		< 0.2	200-600	1000	-40-+80
LC		< 0.2	200-600	1000	-40-+80
MU		< 0.2	200-600	1000	-40-+80
MIRJ		< 0.2	200-600	1000	-40-+80
E-2000		< 0.2	200-600	1000	-40-+80
FC-SC		< 0.2	200-600	1000	-40-+80
FC-ST		< 0.3	200-600	1000	-40-+80
SC-ST		< 0.2	200-600	1000	-40-+80

SC Fiber Optic Adapter

SC UPC Fiber Optic Adapter

SC Fiber Optic Coupler
