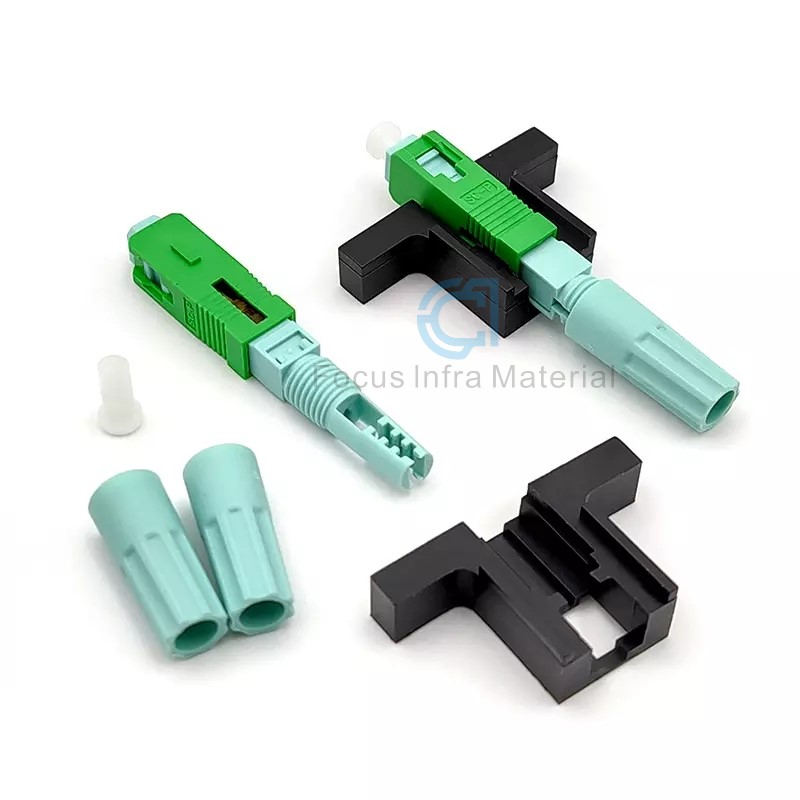

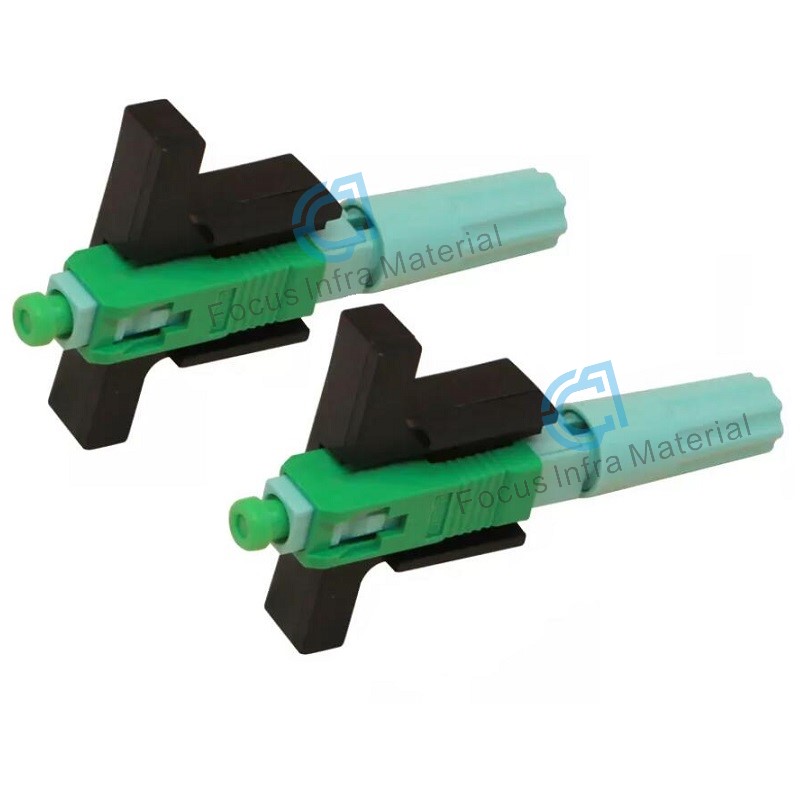

SC APC Opticl Fiber Fast Connector Fiber Optical Sc Upc Drop Cable FTTH Quick Connector
Description:
Mechanical Field-Mountable Fiber Optic Connector is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-embed Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.
Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.
This Fast Connector offers convenience in assembling and strong stability. It allows simple optical core connection without any additional practices, or adhesives. It does not require a working space by connecting itself in the challenging environments such as a telephone pole and a manhole. It reconnects the cables and reduces the connection defect rate by an installer error in the field.
The Field Assembly Connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents, municipalities, utilities & alternative carriers.
Our Field Assembly Optical Connector series are now available in SC, LC, or FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with UPC or APC ferrules for choice.
Features:
1.Factory-installed fiber stub
2.No epoxy or polishing required
3.Quick and easy fiber termination in the field 4.Eliminates cable excess length and pigtail splicestorage
4.Eliminates cable excess length and pigtail splicestorage
5.Cost effective
6.Applicable to bow-type drop cable and 2.0/3.0 indoor cable ,telecom cable
| Connector Type | SC | Polishing | UPC and APC |
| Ferrule | Ceramic | Fiber Mode | 9/125μm Single Mode |
| Cable Diameters | 0.9/2.0/3.0mm Simplex cable 2x3 FTTH Drop Cable | Length | 50mm/53mm/55mm/60mm |
| Insertion Loss | ≤0.3dB(typical); ≤0.5dB(Max) | Return Loss | UPC≥40dB; APC≥50dB |
| Tension Strength | ≥50N | Operating Temp | -40°C~+75°C |
SC APC and LC UPC fiber optic fast connectors enable quick and reliable termination without special tools. They are ideal for FTTH and on-site installation projects.
