Revolutionizing Field Fiber Termination FTTH SC/APC Fiber Optic Quick Connector

163 Views

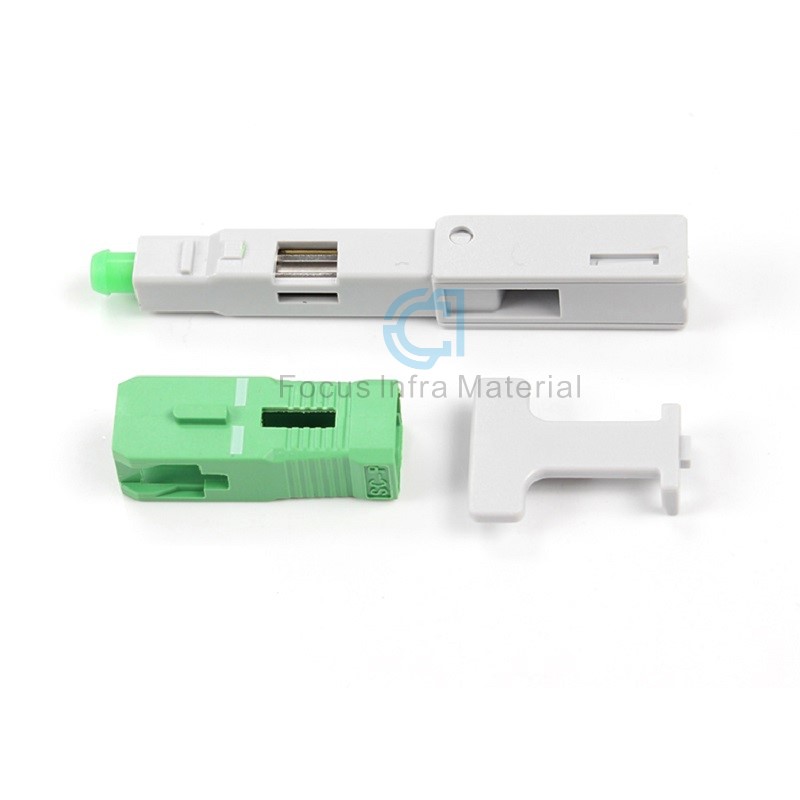

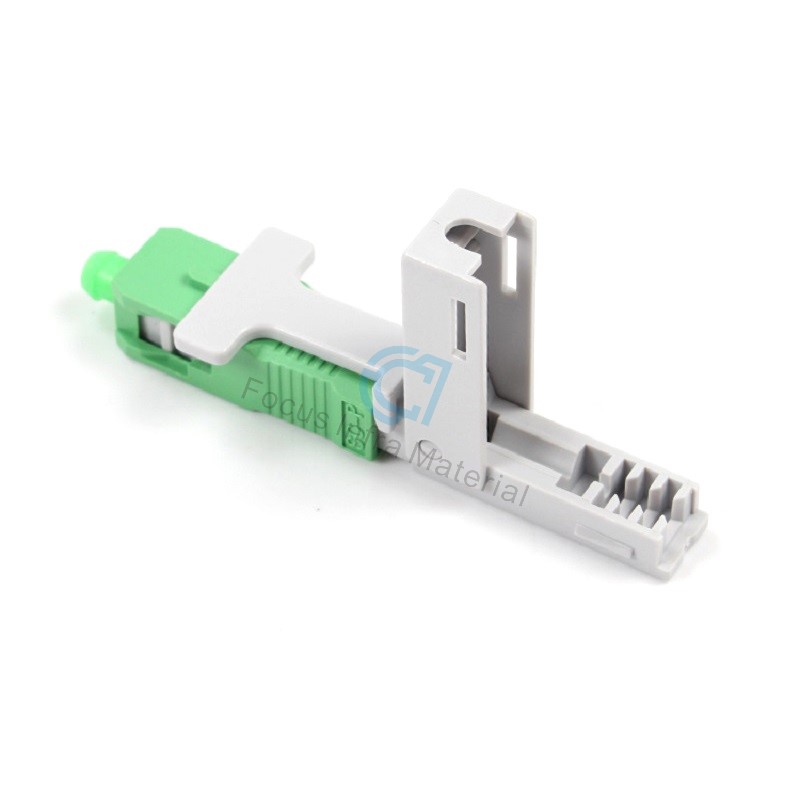

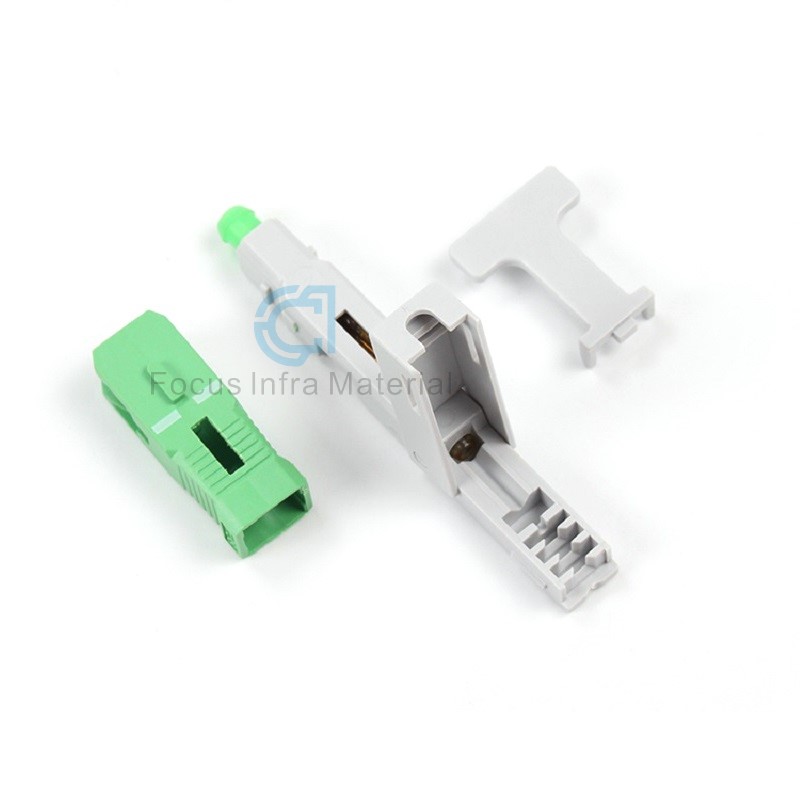

Name: SC/APC Fiber Optic Quick Connector
Connector Type: SC/APC (Angled Physical Contact)
Fiber Type: Single-mode (9/125µm)
Assembly Time: < 2 minutes
Insertion Loss: < 0.3 dB typical
Return Loss: > 60 dB
Durability: > 500 mating cycles
Operating Temperature: -40°C to +85°C

Get a Quote

Category :

Fiber Optic Fast Connectors

Description

Revolutionizing Field Fiber Termination FTTH SC/APC Fiber Optic Quick Connector

Description:

In the fast-paced world of Fiber-to-the-Home (FTTH) deployment, efficiency and reliability in field terminations are paramount. Focus Infra's FTTH SC/APC Quick Connector represents a significant advancement in fiber optic connectivity, offering rapid, tool-less assembly without compromising the critical performance requirements of modern optical networks. This comprehensive guide explores the features, benefits, and applications of this innovative connectivity solution. The SC/APC Quick Connector is a field-installable fiber optic connector designed for fast, reliable termination without the need for epoxy, polishing, or extensive training. The "Quick Connector" terminology refers to its rapid assembly capability, while "SC/APC" specifies the connector type and critical angled polish for superior optical performance.

Applications in FTTH Networks

Primary Deployment Scenarios:

1. Last-Mile Installations:

o Customer premises terminations

o ONT (Optical Network Terminal) connections

o Wall outlet installations

2. Field Service and Repairs:

o Emergency restorations

o Cable damage repairs

o Service activation calls

3. Network Expansion:

o Additional subscriber connections

o Network reconfigurations

o Temporary service installations
