Telecommunication CCTV Products FC Mechanical Flan Adapter APC UPC Universal 0-30dB Adjustable Optical Fiber Attenuator

18 Views

Model: Fiber Optic Attenuator
Use: FTTH, FTTX, FTTA, CATV, lAN'S
Network: Wireless Lan, bluetooth, Wired LAN, ONVIF, SDK, TCP, Ip, POE, GPRS, wifi, 4g, GSM, 3G, Wiegand
Insertion Loss: IL<0.2db
Wavelength: 1260nm~1620nm
Attenuation value: 1-30 dB

Get a Quote

Category :

Fiber Optic Attenuator

Description

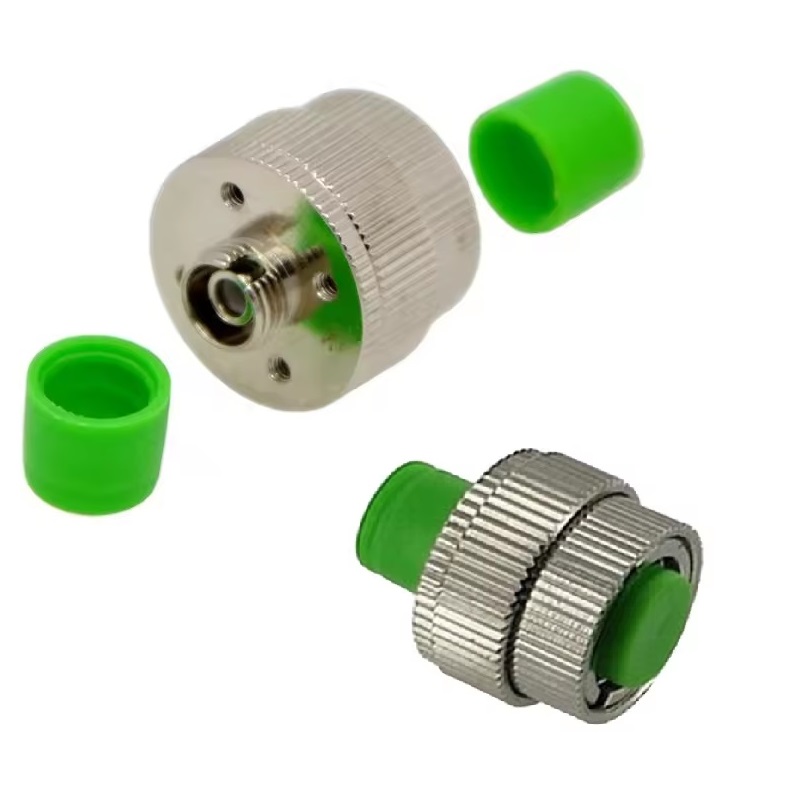

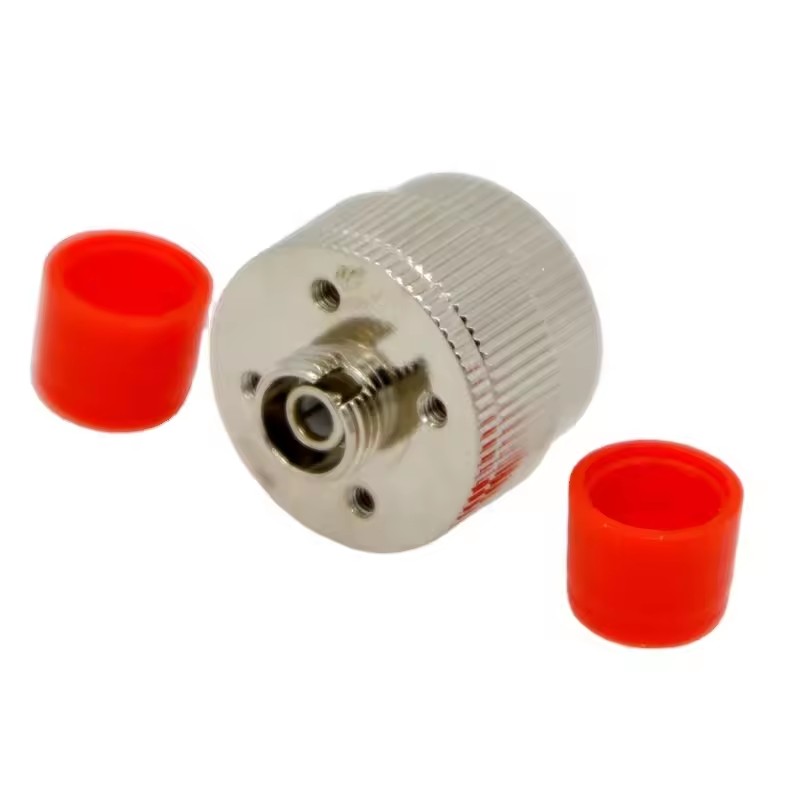

FC Mechanical Flan Adapter APC UPC Universal 0-30dB Adjustable Optical Fiber Attenuator

Description:

Adjustable fiber optic attenuator also called variable fiber optic attenuator, usually is inline type, the appearance like fiber optic patch cord; it is with an adjustable component in the middle of the device to change the attenuation level to a certain figure. There are also handheld variable fiber optic attenuators; they are used as test equipment, and we have the inline fiber optic attenuators.

Fiber optic attenuators are used in the fiber optic communications to reduce the optical fiber power at a certain level, the most commonly used type is female to male plug type fiber optic attenuator, it has the optical fiber connector at one side and the other side is a female type fiber optic adapter, fiber optic attenuator name is based on the connector type and the attenuation level. FC 5dB fiber optic attenuator means this attenuator uses FC fiber optic connector and it can reduce the optical fiber power level by 5dB. Commonly used attenuation range is from 1dB to 20dB.

Applications:

Fiber in The Loop. (FITL)
Passive Optical Networks
Fiber to the Home. (FTTH)
Test equipments
LANs
CATV
Video distribution

FC UPC Female to Female Mechanically Variable FC Fiber Optic Attenuator
