FC/UPC 0-30dB Fixed Fiber Optic Attenuator for FTTH
Description:
In the sophisticated world of fiber optic communications, precise signal power control is crucial for maintaining network integrity and equipment performance. Chengdu Focus Infra Materials Company presents its advanced FC/UPC 0-30dB Fixed Fiber Optic Attenuator with flange adapter, specifically engineered to deliver exceptional signal management in FTTH and telecommunications networks. This comprehensive solution combines precision attenuation with versatile connectivity options.

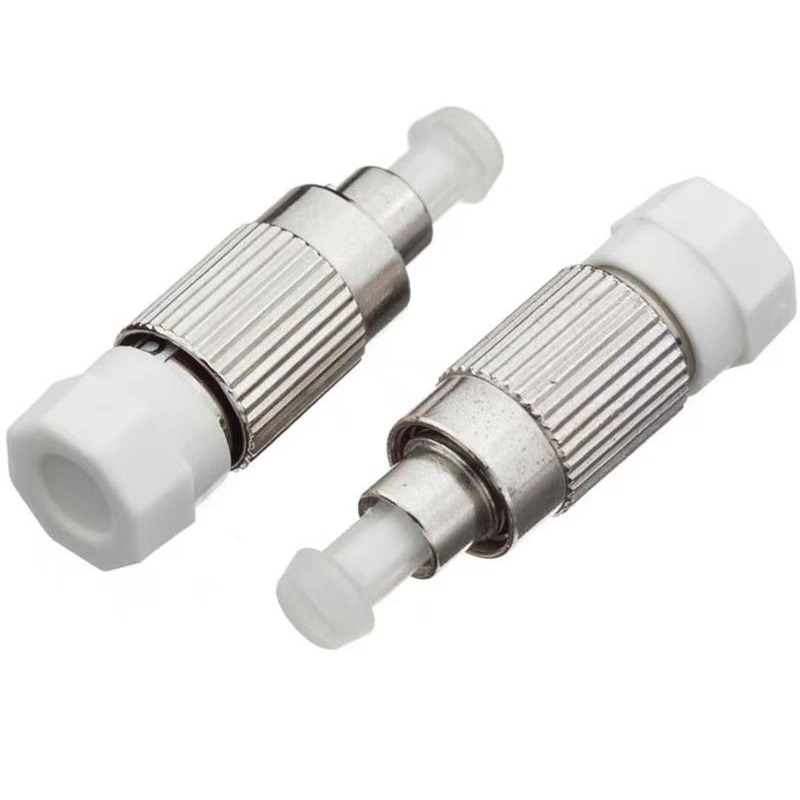

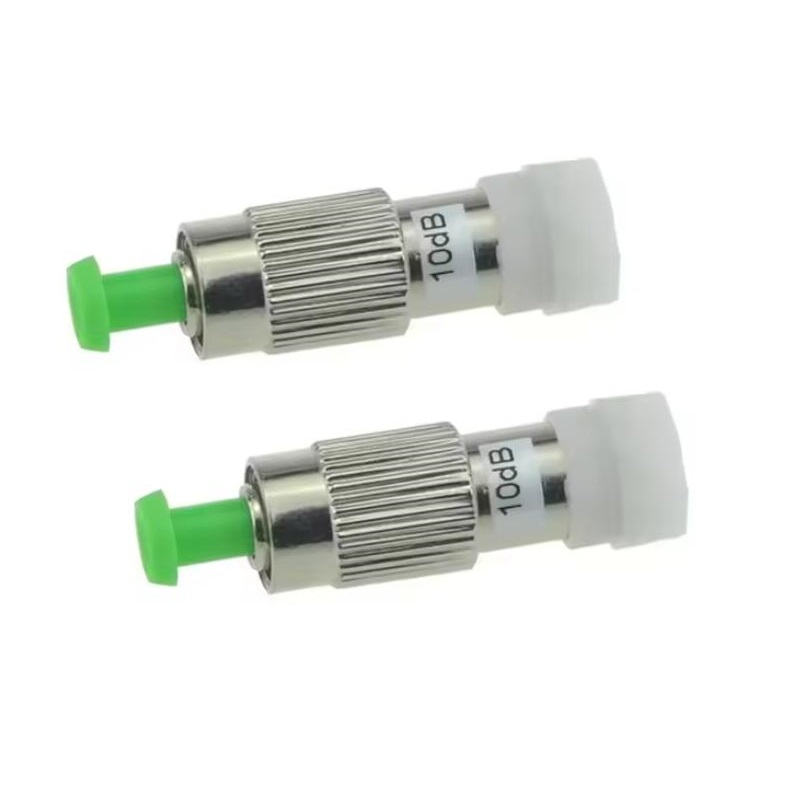

The FC/UPC Fixed Fiber Optic Attenuator is a high-performance passive device designed to provide accurate, fixed-level signal attenuation in single-mode fiber optic systems. Featuring a robust flange adapter design and available in male/female configurations, this attenuator ensures reliable performance in diverse network environments.
The plug type male-female optical attenuator is characterized by different interfaces on both ends, one male (like fiber optical connector) and the other female (like fiber optical adapter), and fixed attenuation value. SC, FC, LC, ST, MU and E2000 type available. Chengdu Focus Infra Materials company offers attenuator features with high attenuation accuracy, reliable performance, low IL and high return loss, and is widely applied to test equipment, data center, CATV system etc.
Technical Specifications:
Connector Type: FC/UPC (Male/Female configurations)
Attenuation Range: 0-30dB (1dB increment options available)
Accuracy: ±0.2dB (1-10dB), ±0.5dB (11-30dB)
Insertion Loss: < 0.3dB
Return Loss: > 55dB
Wavelength Range: 1260-1650nm
Operating Temperature: -40°C to +85°C
Flange Type: Standard FC flange adapter
Durability: > 1000 mating cycles
Feature:
Application:
CATV
Telecommunication networks
Test equipment
Local Area Networks(LANs)
Data processing networkss.
