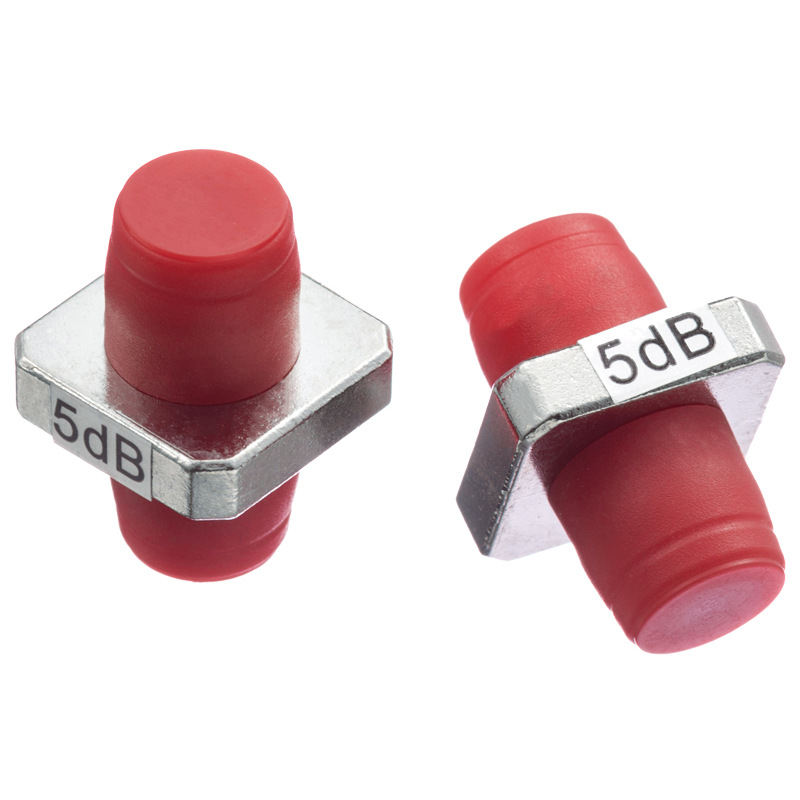

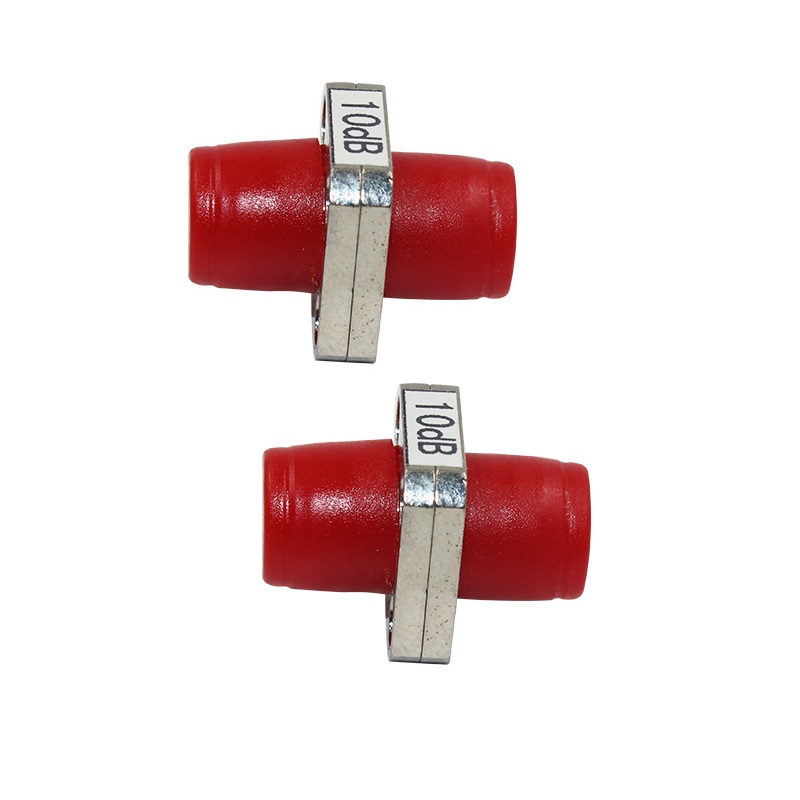

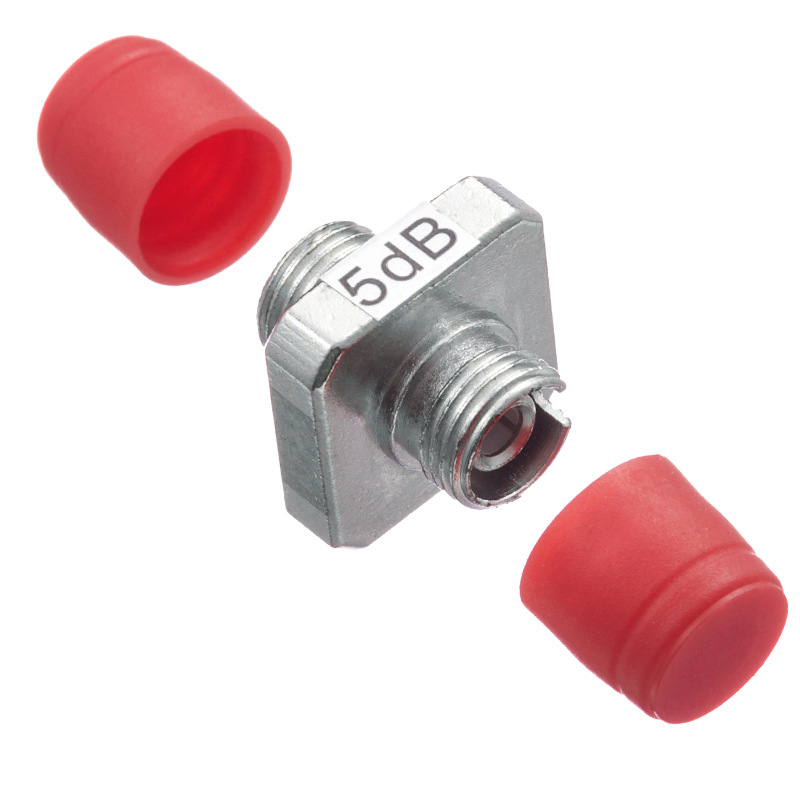

Fixed Flange-Mount FC/UPC Fiber Attenuator 1dB 5dB 10dB with Flange Fiber Optic Adapter
Description:
In the precise world of fiber optic network management, maintaining optimal signal levels is critical for system performance and equipment protection. Chengdu Focus Infra Materials Company introduces its premium Fixed Flange-Mount FC/UPC Fiber Optic Attenuators in 1dB, 5dB, and 10dB values, engineered to deliver exact signal control in telecommunications and data center environments.
These flange-mount FC/UPC fixed attenuators represent the perfect combination of precision engineering and practical installation design. Specifically crafted for single-mode fiber systems, they provide reliable, stable attenuation in a compact, easy-to-install package.
The plug type male-female optical attenuator is characterized by different interfaces on both ends, one male (like fiber optical connector) and the other female (like fiber optical adapter), and fixed attenuation value. SC, FC, LC, ST, MU and E2000 type available. Chengdu Focus Infra Materials company offers attenuator features with high attenuation accuracy, reliable performance, low IL and high return loss, and is widely applied to test equipment, data center, CATV system etc.
Chengdu Focus Infra Materials Company brings decades of optical component manufacturing expertise to every product. Our commitment to quality and innovation ensures reliable performance in the most demanding network environments.
Technical Specifications:
Connector Type: FC/UPC
Attenuation Values: 1dB, 5dB, 10dB
Accuracy: ±0.3dB
Insertion Loss: < 0.2dB
Return Loss: > 55dB
Wavelength Range: 1260-1650nm
Operating Temperature: -40°C to +75°C
Flange Type: Standard FC flange mount
Durability: > 1000 mating cycles
Tensile Load: > 50N
Application:
Application:
CATV
Telecommunication networks
Test equipment
Local Area Networks(LANs)
Data processing networkss.
