CCTV FTTH FTTx Network Components LC APC Duplex Fiber Optic Adapter LC Optical Fiber Coupler

12 Views

Mode: LC APC
Model: SM DX Single Mode Duplex
Use: FTTH, FTTX, FTTA, CATV, LANs
Durability: >1000 Matings

Get a Quote

Category :

LC Fiber Optic Adapter

Description

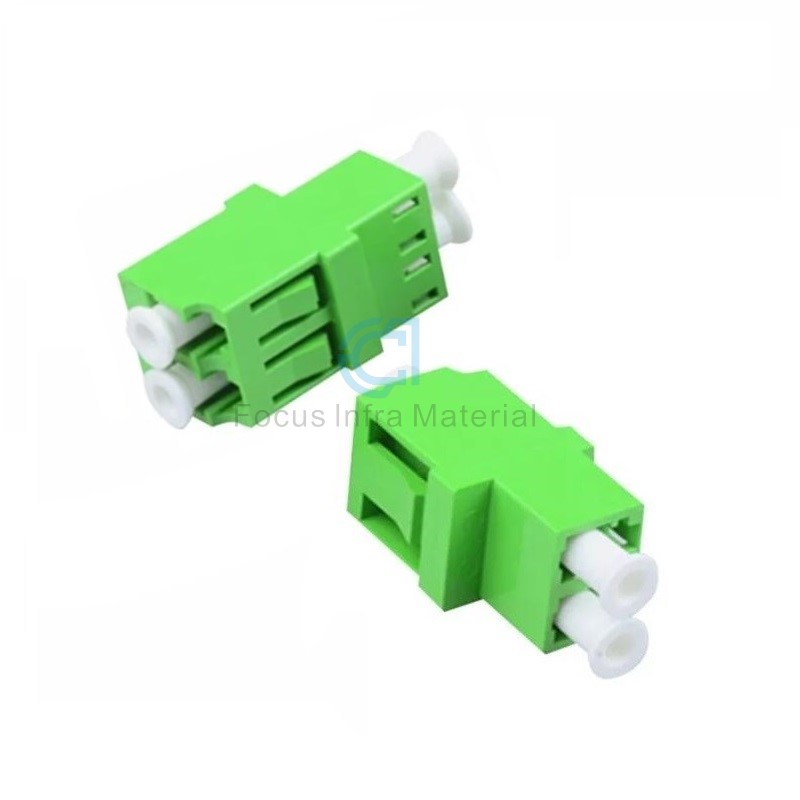

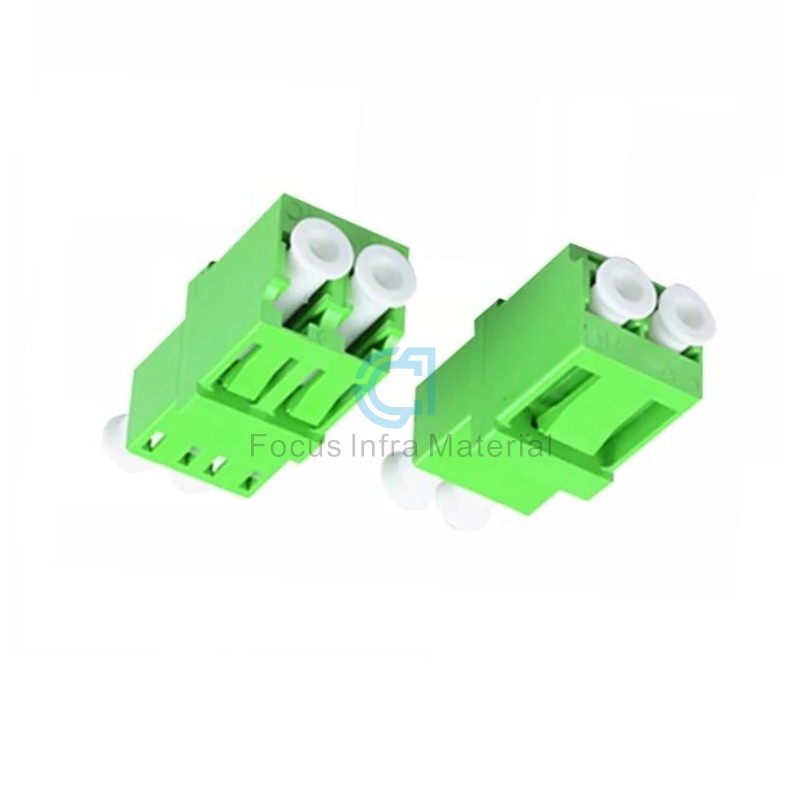

LC APC Duplex Fiber Optic Adapter LC Optical Fiber Coupler

Decsription:

Fiber Optic Adapter can be divided into common silicon-based optical fiber single-mode and multi-mode connectors according to different transmission media, as well as other optical fiber connectors such as plastics as transmission media; according to the structure of the connector, it can be divided into: FC, SC, ST, LC, D4, DIN, MU, MT, etc. various forms.

The "LC" connector is similar in shape to the SC connector, but smaller than the SC connector.

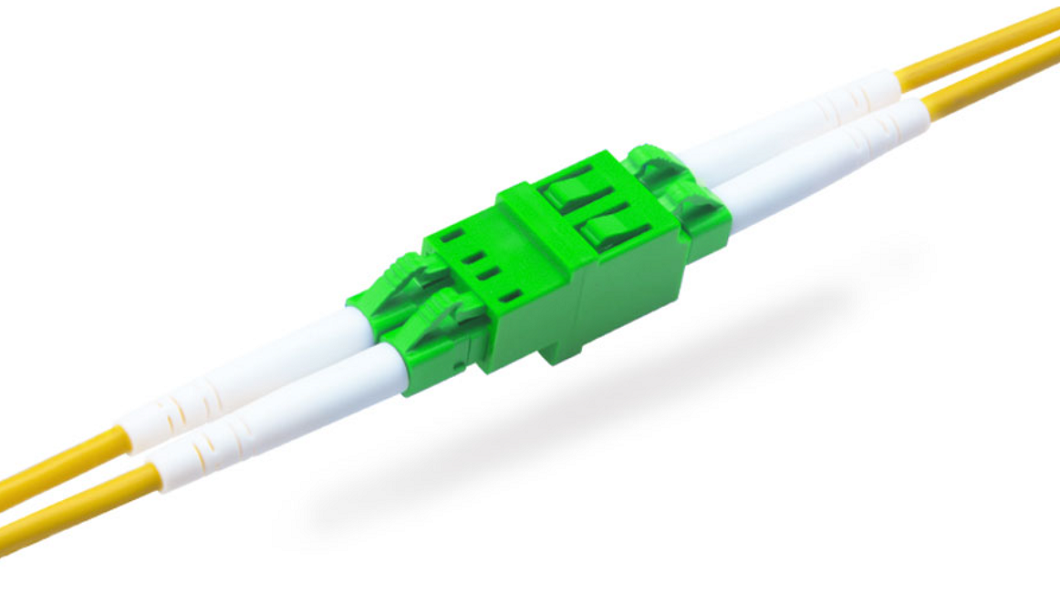

The optical fiber connector is a device for detachable (movable) connection between an optical fiber and an optical fiber. It precisely connects the two end faces of the optical fiber so that the light energy output by the transmitting fiber can be coupled to the receiving fiber to the maximum extent.

Features:

Usually installed as wall mounted in the building or at the green belt.

The optical splitter module is designed of modular drawer type, and it has high interchangeability and generality.

SMC complex plastic or Cold rolled plate without material optional.

Fixed cable and protection.

Protect optical fiber splice joint.

Specification:

Type		Insertion loss(db)	Tensility resist(g)	Inser and pull times	Temperature(℃)
FC	PC	< 0.2	200-600	1000	-40-+80
FC	APC	< 0.2	200-600	1000	-40-+80
SC	PC	< 0.2	200-600	1000	-40-+80
SC	APC	< 0.2	200-600	1000	-40-+80
ST		< 0.2	200-600	1000	-40-+80
LC		< 0.2	200-600	1000	-40-+80
MU		< 0.2	200-600	1000	-40-+80
MIRJ		< 0.2	200-600	1000	-40-+80
E-2000		< 0.2	200-600	1000	-40-+80
FC-SC		< 0.2	200-600	1000	-40-+80
FC-ST		< 0.3	200-600	1000	-40-+80
SC-ST		< 0.2	200-600	1000	-40-+80

LC Fiber Optic Adapter
