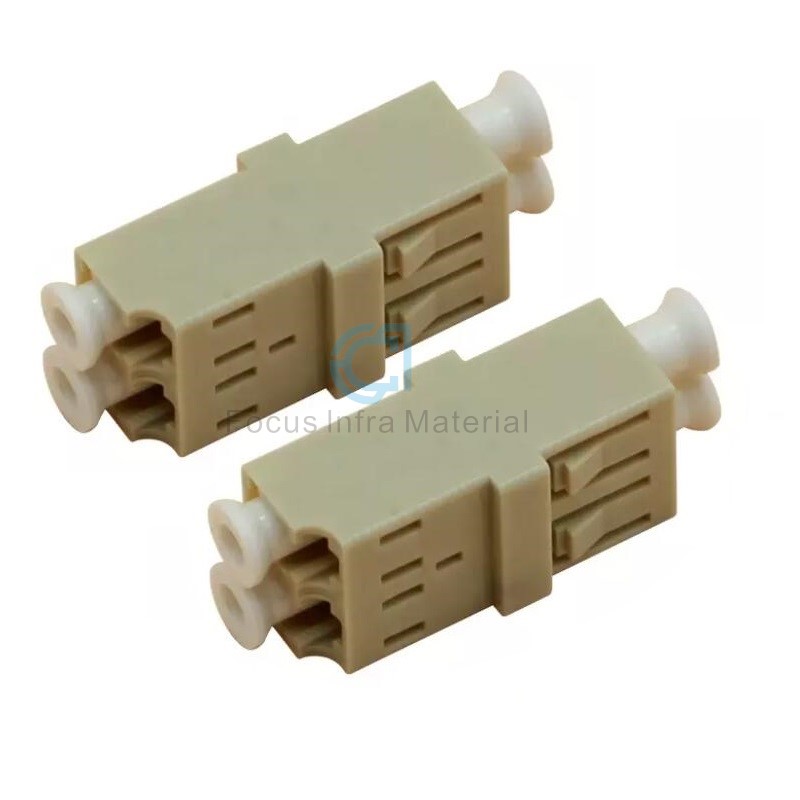

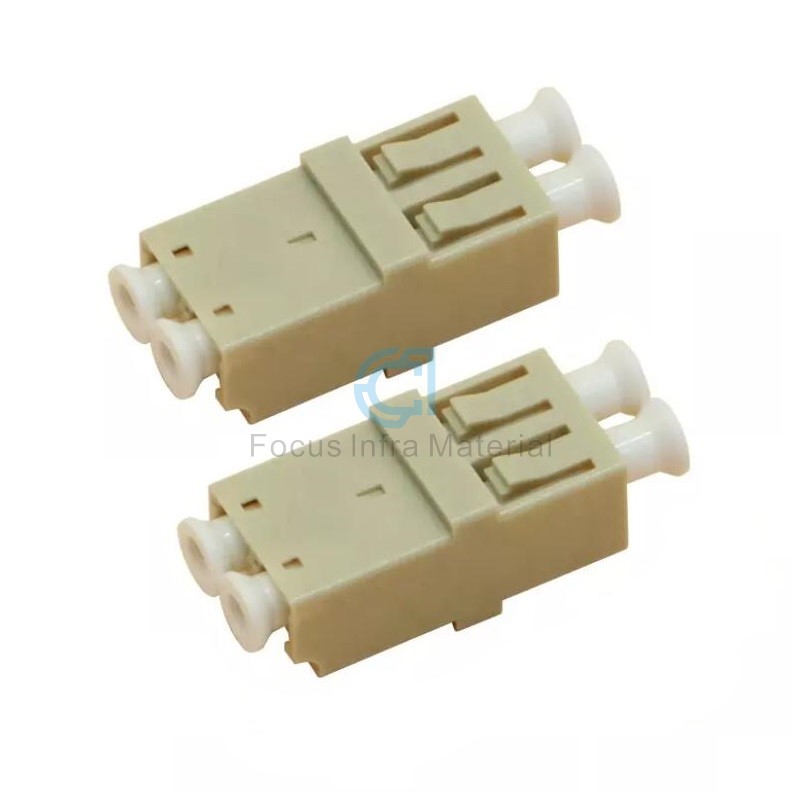

LC PC Multi Mode Duplex Fiber Optic Without Ear with Flange Connector Adapter FTTX Network Connection

14 Views

Model Number: LC PC MM DX
Insertion Loss: <0.2db
Return Loss: >50db
Use: FTTH, FTTX, FTTA, CATV, LANs

Get a Quote

Category :

LC Fiber Optic Adapter

Description

LC PC Multi Mode Duplex Fiber Optic Without Ear with Flange Connector Adapter FTTX Network Connection

Description:
Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.
Feature:

Low insertion loss and back reflection loss

Ferrule end surface pre-domed

Precision anti-rotation key and corrosion resistant body

Telcordia style boots
Free-floating ceramic ferrule

Zirconia sleeves or Phosphor bronze sleeves
Application:
CATV System
Telecommunications
Optical Networks
Testing / Measurement Instruments
Fiber To the Home
Patch Panels
Distribution Frames
Maintenance or Emergency Restoration of Fiber Networks
FTTH Outlets
Connection at the desk for LAN enviroments

Parameters:

	SM			MM
	PC	UPC	APC	PC
Insertion loss	≤0.2 dB	≤0.2 dB	≤0.2 dB	≤0.2 dB
Repeatebility	≤0.2 dB
Interchangeability	≤0.2 dB
Working temperature	- 40°C ~ + 85°C
Storage temperautur	- 40°C ~ + 85°C

LC PC Multi Mode Duplex Fiber Optic Without Ear with Flange Connector Adapter

Related Products

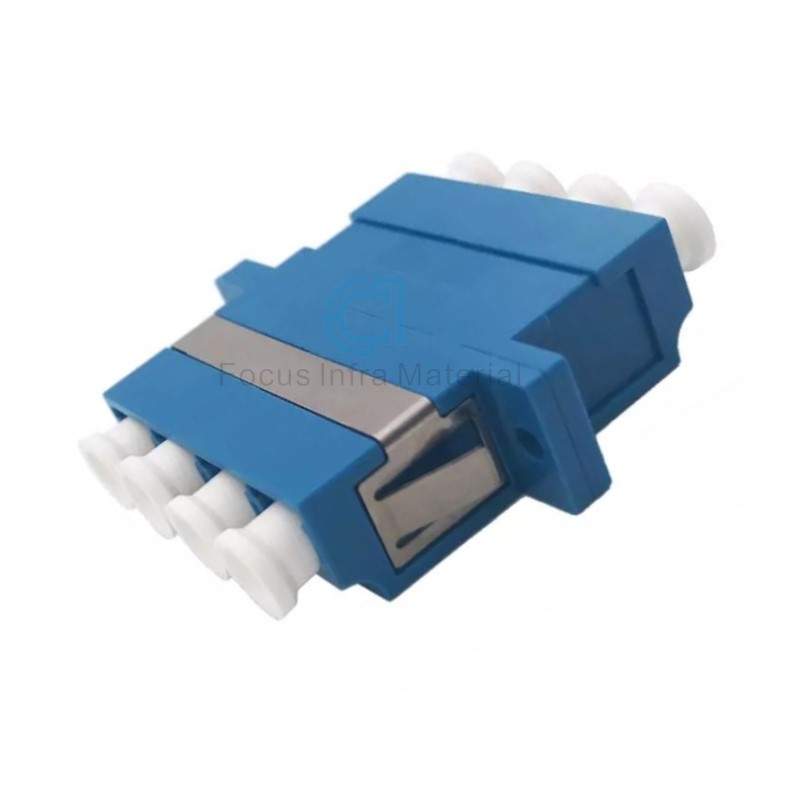

Fiber Optical Adapter FTTH Fiber Optic Connector LC PC Multimode Fiber Optic Coupler Fiber Adapter Quad Adapter with Flange Metal Clips

Model Number: LC UPC Model Number: Quad Insertion Loss: <0.2db Return Loss: >50db

Fiber Opptical Adapter FTTH Fiber Optic Connector LC PC Multimode Fiber Optic Coupler Fiber Adapter Quad Adapter with Flange Metal Clips

Model: LC PC MM Quad Insertion Loss: <0.2db Return Loss: >50db Durability: >1000 Matings Flange: With Flange，without Flange

Best Fiber Optic Adapter for Telecom Networks Fiber Optic Adapter LC APC SM DX Coupler with Flange

Model Number: LC APC SM DX Insertion Loss: <0.2db Return Loss: >50db Use: FTTH, FTTX, FTTA, CATV, LANs

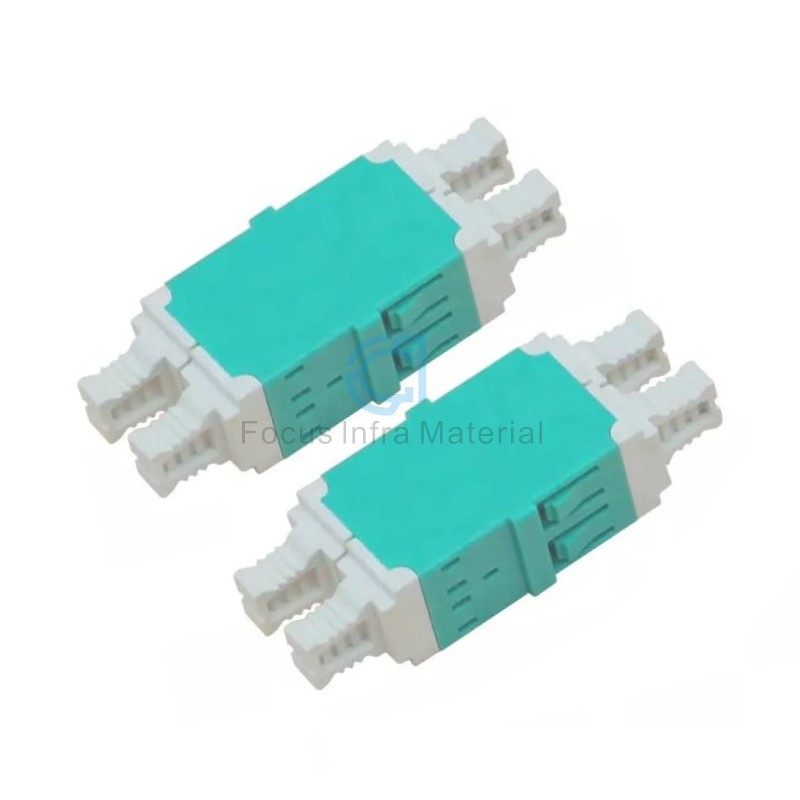

FTTH Adapter Quadruple SM High Quality LC Fiber Adapter mm Om3 Duplex LC Optical Adapter With Flange

Model:LC UPC SM Quadruple Insertion Loss: <0.2db Return Loss: >50db Durability: >1000 Matings Flange: With Flange，without Flange

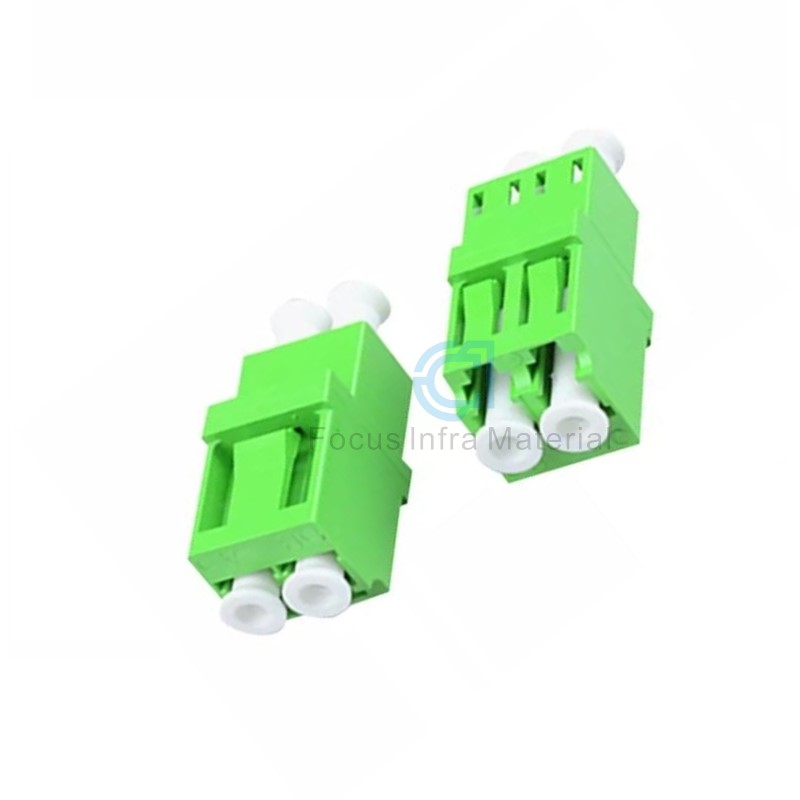

CCTV FTTH FTTx Network Components LC APC Duplex Fiber Optic Adapter LC Optical Fiber Coupler

Mode: LC APC Model: SM DX Single Mode Duplex Use: FTTH, FTTX, FTTA, CATV, LANs Durability: >1000 Matings

FTTH Fiber Optic Adapter LC Quad Double Deck 2 Port Sm 2 Core Upc Om3 Om4 Fiber Optic Adapter for Network Adapter

Model: LC Quad Double Deck 2 Port Insertion Loss: <0.2db Return Loss: >50db Durability: >1000 Matings Use: FTTH, FTTX, FTTA, CATV

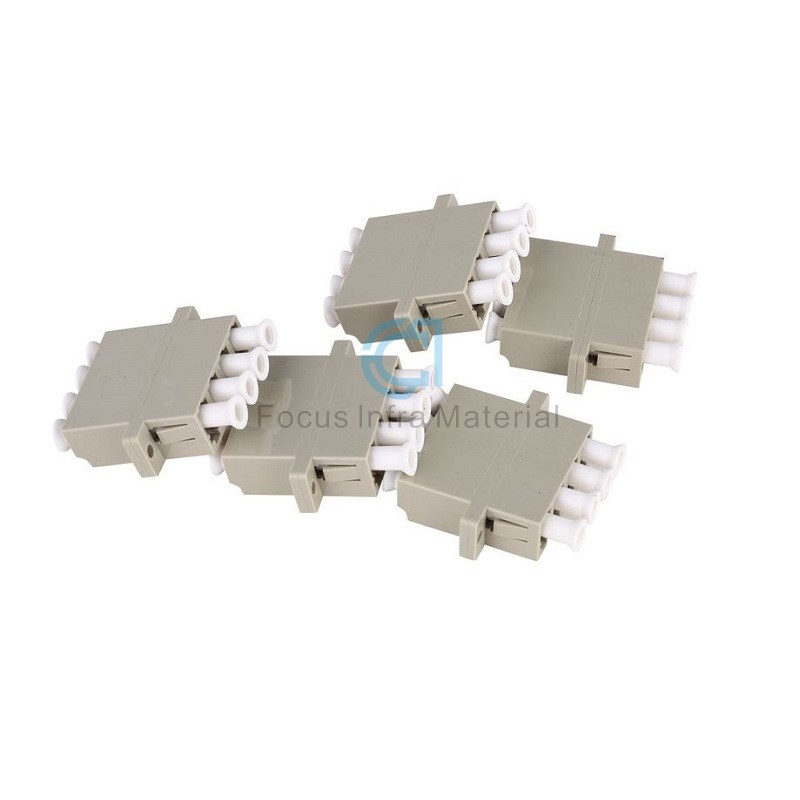

FTTX FTTH LC UPC MM 4 Core Fiber Optic Connector Adapters Quad With Flange Optical Coupler

Model: LC UPC MM Quad Insertion Loss: <0.2db Return Loss: >50db Durability: >1000 Matings Use: FTTH, FTTX, FTTA, CATV

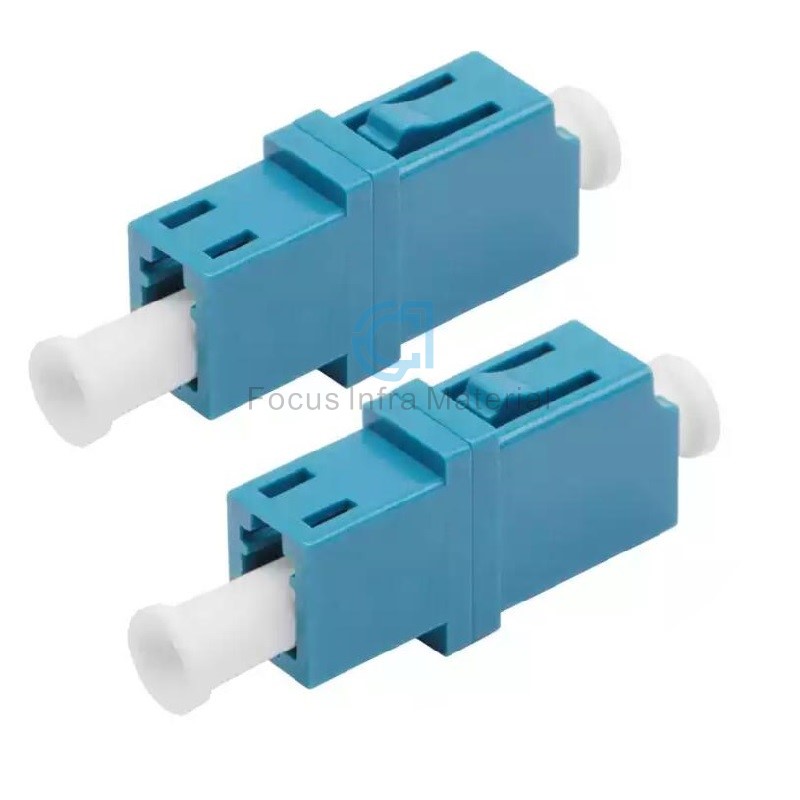

Fiber Optical Adapter LC PC SM SX Single Mode Simplex Coupler from Chinese Factory Directly
