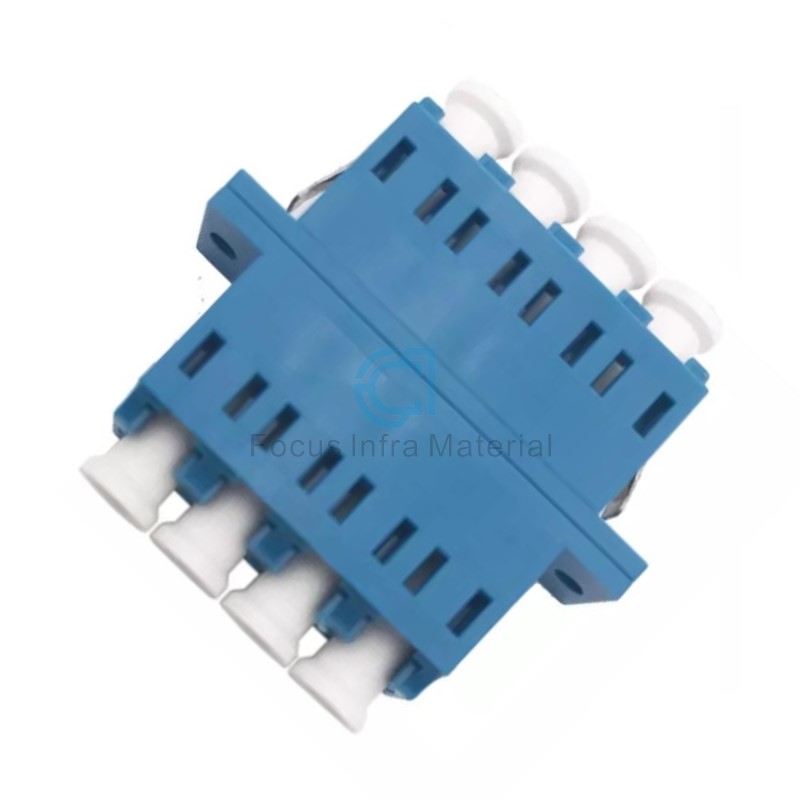

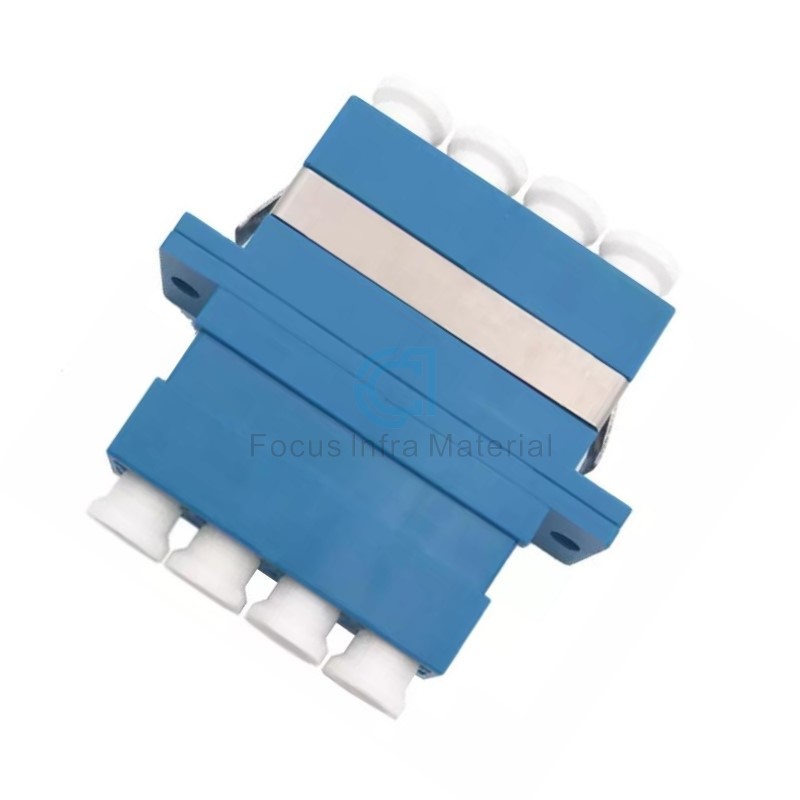

FTTH Adapter Quadruple SM High Quality LC Fiber Adapter mm Om3 Duplex LC Optical Adapter With Flange

11 Views

Model:LC UPC SM Quadruple
Insertion Loss:	<0.2db
Return Loss: >50db
Durability: >1000 Matings
Flange: With Flange，without Flange

Get a Quote

Category :

LC Fiber Optic Adapter

Description

FTTH Adapter Quadruple SM High Quality LC Fiber Adapter mm Om3 Duplex LC Optical Adapter With Flange

Description:

Optical fiber connectors are the most widely used optical passive components in optical fiber communication systems. Most optical fiber connectors are composed of three parts: two optical fiber connectors and a coupler. It is widely used in optical fiber distribution frames (ODF), optical fiber communication equipment, Instruments, etc., superior performance, stable and reliable. The optical fibers are connected by the adapter through the internal open sleeve to ensure the highest connection performance between the optical fiber connectors. In order to be fixed on various panels, a variety of fine fixing flanges are also designed.

Features:

Standardization and Uniformization of Metal Casing
Good repeatability, interchangeability and environmental stability
Zirconia or Bronze Sleeve
Precision mechanical dimension
Low Insertion Loss, high Return loss
Ferrule end surface pre-domed
Precision anti-rotation key and corrosion resistant body
UL-rated plastic housing
Telcordia style boots
Free-floating ceramic ferrule
Zirconia sleeves or Phosphor bronze sleeves
D-shaped easily installs into panel mount

Application:

Equipment Test
Local Area Network
Optic instrumentation
CATV system, Optic LAN
Telecommunication Networks
Fiber optic communication network
Optical Broadband Access Network

Specification:

Type		Insertion loss(db)	Tensility resist(g)	Inser and pull times	Temperature(℃)
FC	PC	< 0.2	200-600	1000	-40-+80
FC	APC	< 0.2	200-600	1000	-40-+80
SC	PC	< 0.2	200-600	1000	-40-+80
SC	APC	< 0.2	200-600	1000	-40-+80
ST		< 0.2	200-600	1000	-40-+80
LC		< 0.2	200-600	1000	-40-+80
MU		< 0.2	200-600	1000	-40-+80
MIRJ		< 0.2	200-600	1000	-40-+80
E-2000		< 0.2	200-600	1000	-40-+80
FC-SC		< 0.2	200-600	1000	-40-+80
FC-ST		< 0.3	200-600	1000	-40-+80
SC-ST		< 0.2	200-600	1000	-40-+80

network solutions fiber optic adapter
