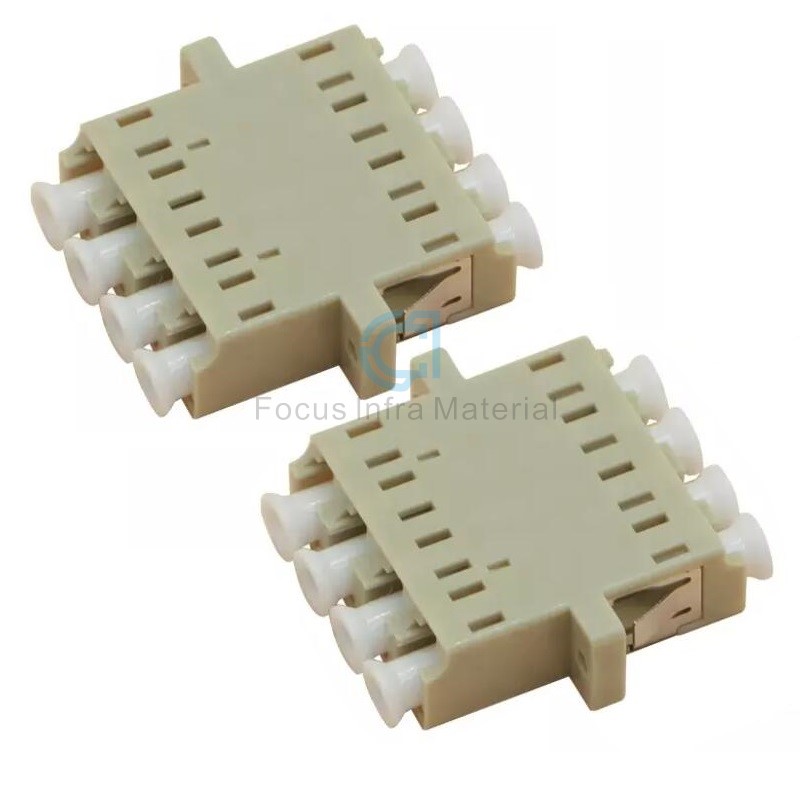

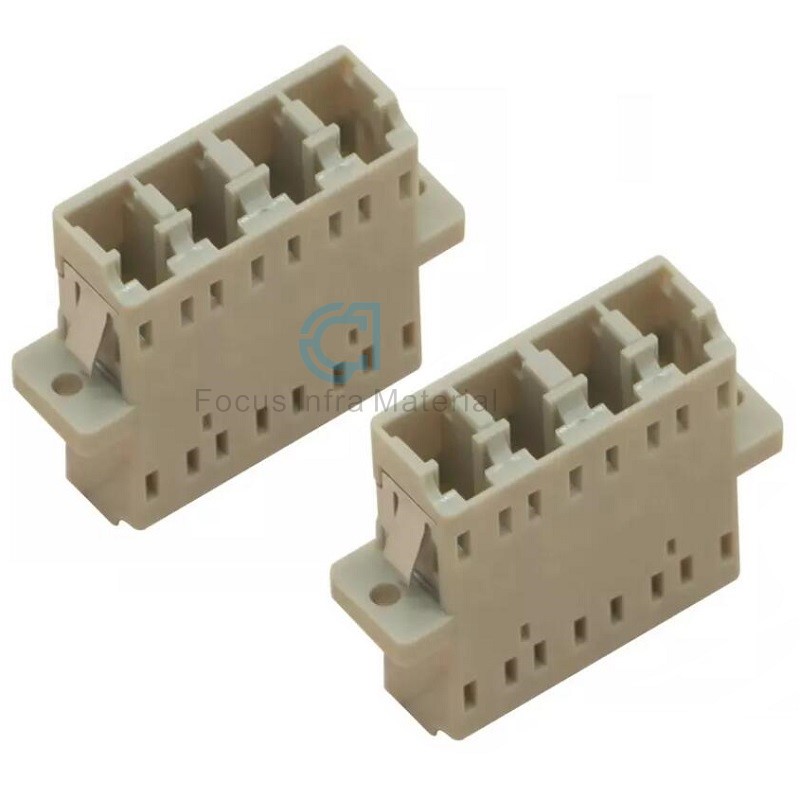

Fiber Optical Adapter FTTH Fiber Optic Connector LC PC Multimode Fiber Optic Coupler Fiber Adapter Quad Adapter with Flange Metal Clips

14 Views

Model Number: LC UPC
Model Number: Quad
Insertion Loss: <0.2db
Return Loss: >50db

Get a Quote

Category :

LC Fiber Optic Adapter

Description

Fiber Optical Adapter FTTH Fiber Optic Connector LC PC Multimode Fiber Optic Coupler Fiber Adapter Quad Adapter with Flange Metal Clips

Description:

Fiber optic adapter are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection. SC fiber optic adaptors are all with plastic housing, there are different colors: blue for single mode PC, green for single mode APC and beige for multimode PC. All SC fiber optic adaptors are flange type, single mode adaptors are with zirconia sleeve while multimode fiber adaptors are with bronze sleeve. SC fiber optic adaptors are available with both simplex adaptors and duplex adaptors.

LC fiber optic adaptors are all plastic housing; there are simplex LC adaptors and duplex LC adaptors, usually duplex LC fiber adaptors are with SC footprint. The LC fiber adaptors colors are same as SC fiber optic adaptors: blue for single mode PC, beige for multi mode PC and green for single mode APC. LC fiber optic adaptors are with bronze sleeve for multimode and zirconia sleeve for single mode.

Features:

Low insertional loss and back reflection loss

High prcision alignment

Telcordia, ANSI, TIA/EIA, NTT and JIS

compliance

Compact design

Plastic housing

Application:

CATV

Telecommunication networks

Test equipment

Metro

Local Area Networks(LANs)

Data processing networks

Multimedia

Gigabit Ethernet

Active device/Transceiver

Specification:

Type		Insertion loss(db)	Tensility resist(g)	Inser and pull times	Temperature(℃)
FC	PC	< 0.2	200-600	1000	-40-+80
FC	APC	< 0.2	200-600	1000	-40-+80
SC	PC	< 0.2	200-600	1000	-40-+80
SC	APC	< 0.2	200-600	1000	-40-+80
ST		< 0.2	200-600	1000	-40-+80
LC		< 0.2	200-600	1000	-40-+80
MU		< 0.2	200-600	1000	-40-+80
MIRJ		< 0.2	200-600	1000	-40-+80
E-2000		< 0.2	200-600	1000	-40-+80
FC-SC		< 0.2	200-600	1000	-40-+80
FC-ST		< 0.3	200-600	1000	-40-+80
SC-ST		< 0.2	200-600	1000	-40-+80

Quad Fiber Optic Adapters CATV Lc To Lc Coupler Fiber Connection 0
