Fiber Optic Adapter LC APC Duplex Metal Clip with Shutter for Network Assembly

14 Views

Model Number: LC/APC
Insertion Loss:＜0.2db
Return Loss: ＞50db
Use: FTTH, FTTX, FTTA, CATV, lAN'S

Get a Quote

Category :

LC Fiber Optic Adapter

Description

Fiber Optic Adapter LC APC Duplex Metal Clip with Shutter

Description:

The Fiber Optic Coupler is a device for detachable (movable) connection between an optical fiber and an optical fiber. Chengdu Focus Infra Materials company is manufacturing a wide range of fiber optic coupler to meet the market requirments. LC/APC Fiber Optic Adapter with auto shutter is specially designed to suit FTTH applications. The shutter is designed to prevent ingress of dust and also to prevent accidental exposure to laser. It's widely used in Optical Distribution Frame (ODF), fiber optic communication equipments and instrumentation. Welcome to contact us at yuki.hecy@cdfocusinfra.com for more details.

Specification:

Type		Insertion loss(db)	Tensility resist(g)	Inser and pull times	Temperature(℃)
FC	PC	< 0.2	200-600	1000	-40-+80
FC	APC	< 0.2	200-600	1000	-40-+80
SC	PC	< 0.2	200-600	1000	-40-+80
SC	APC	< 0.2	200-600	1000	-40-+80
ST		< 0.2	200-600	1000	-40-+80
LC		< 0.2	200-600	1000	-40-+80
MU		< 0.2	200-600	1000	-40-+80
MIRJ		< 0.2	200-600	1000	-40-+80
E-2000		< 0.2	200-600	1000	-40-+80
FC-SC		< 0.2	200-600	1000	-40-+80
FC-ST		< 0.3	200-600	1000	-40-+80
SC-ST		< 0.2	200-600	1000	-40-+80

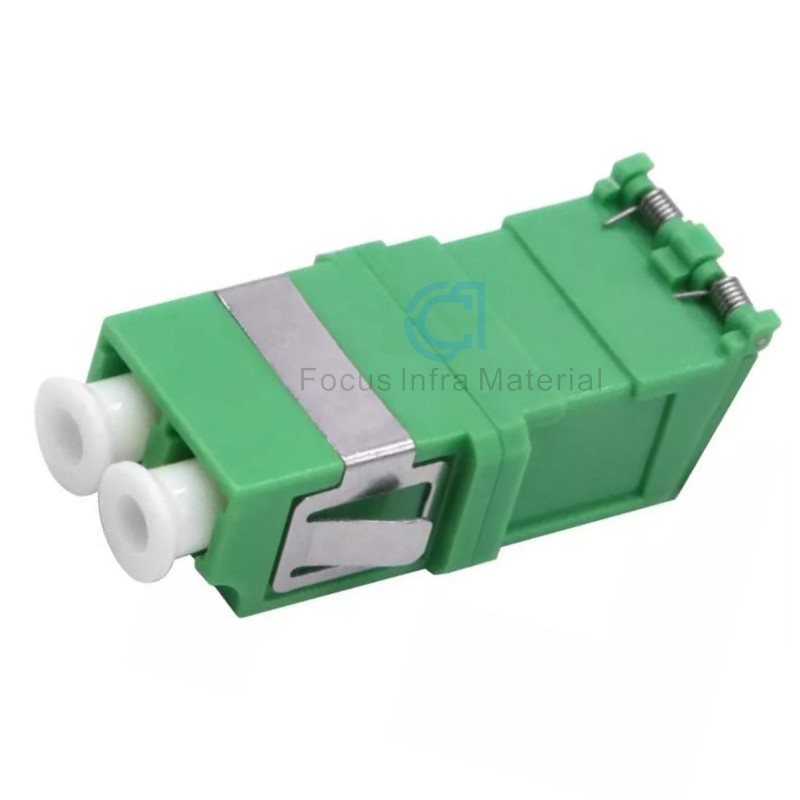

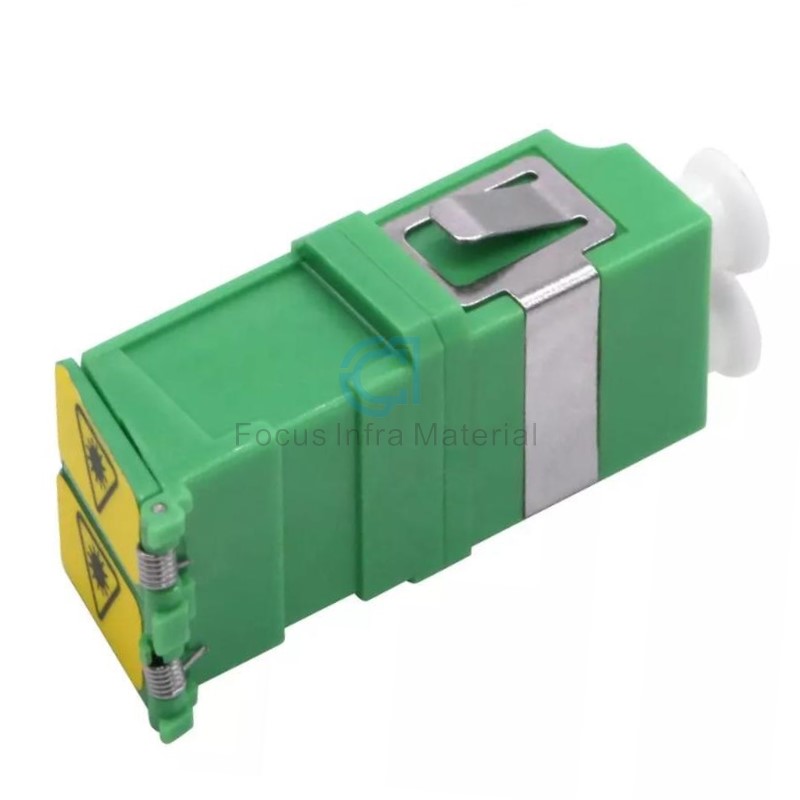

LC APC fiber optic adapter with auto shutter

Fiber Optic Adapter LC APC Duplex Metal Clip with Shutter
