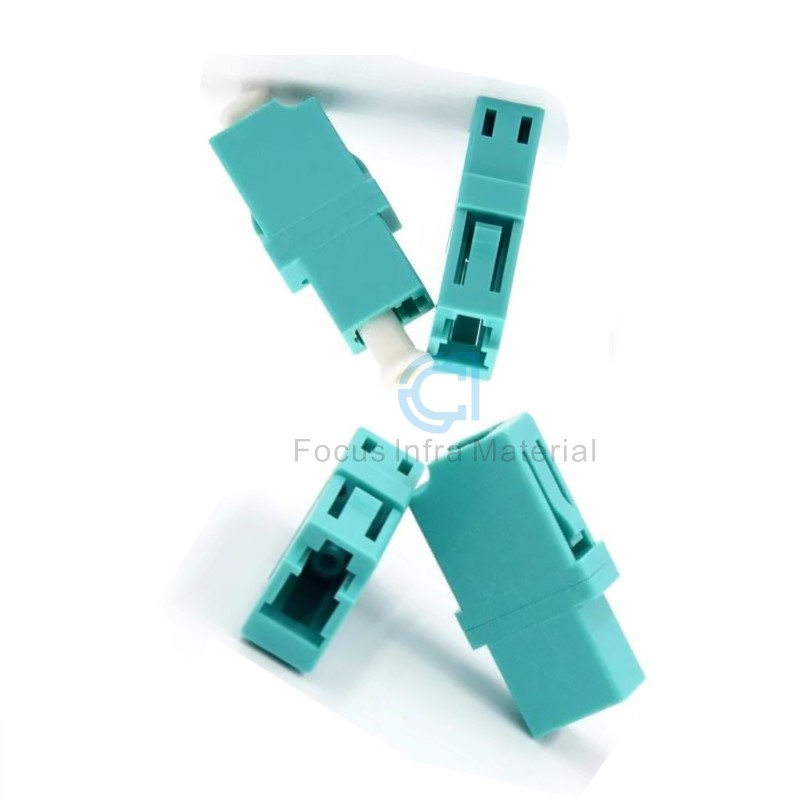

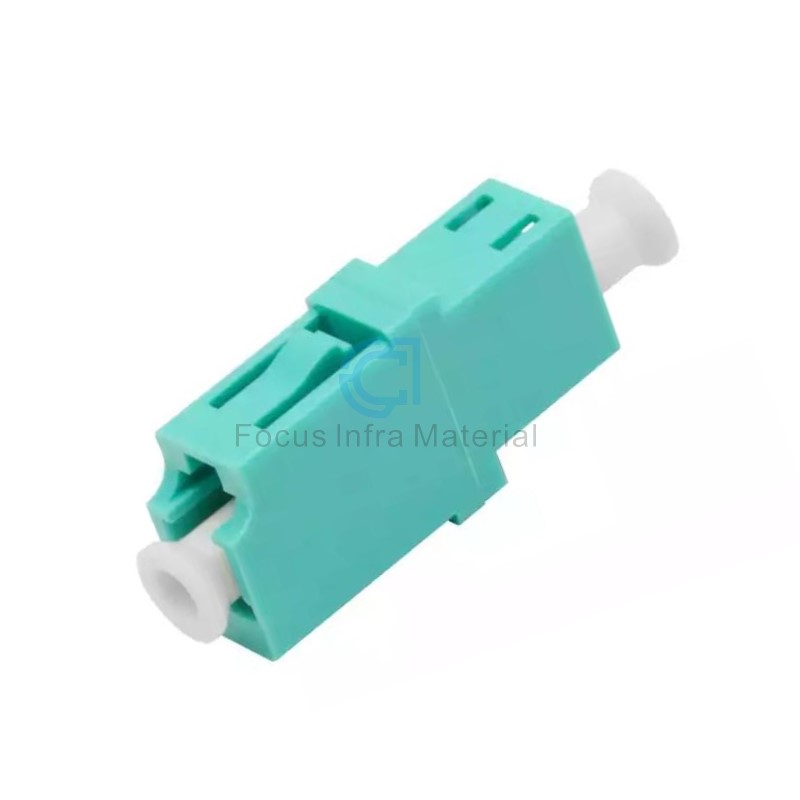

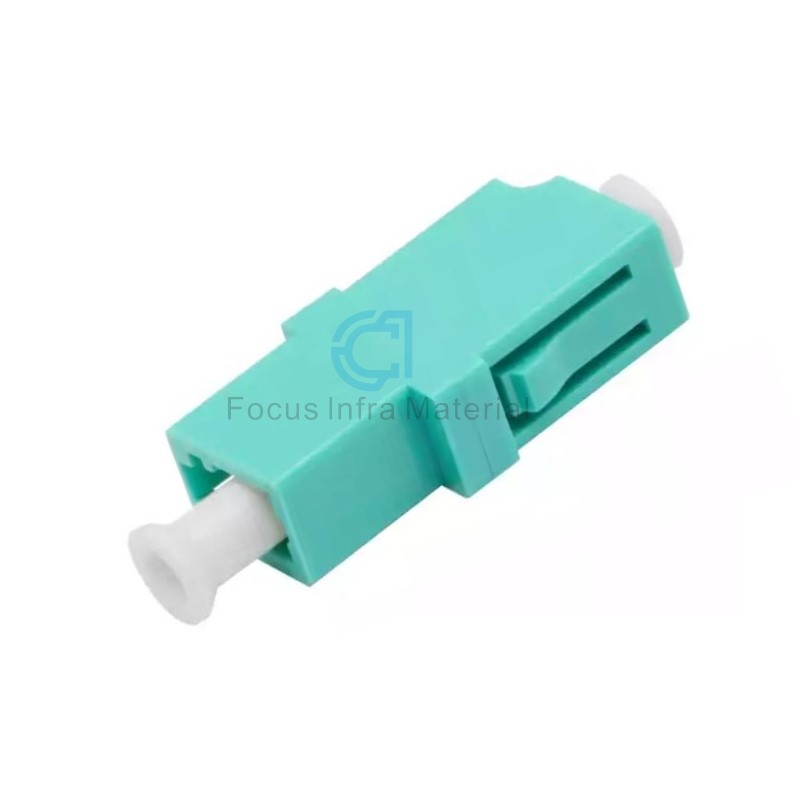

Fiber Optic Adapter Single Mode LC PC Om3 Multimode Sinplex Fiber Optical Coupler

293 Views

Model Number: LC UPC
Insertion Loss: <0.2db
Return Loss: >50db
Flange: With Flange / Without Flange

Get a Quote

Category :

LC Fiber Optic Adapter

Description

Fiber Optic Adapter Single Mode LC PC Om3 Multimode Sinplex Fiber Optical Coupler

Description:

SM DX LC UPC Single Mode Duplex Fiber Optic Adapter are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection. LC fiber optic adaptors are all plastic housing; there are simplex LC adaptors and duplex LC adaptors, usually duplex LC fiber adaptors are with SC footprint. The LC fiber adaptors colors are same as SC fiber optic adaptors: blue for single mode PC, beige for multi mode PC and green for single mode APC. LC fiber optic adaptors are with bronze sleeve for multimode and zirconia sleeve for single mode.

Both ends of the fiber optic adapter can be inserted into fiber optic connectors of different interface types to realize the conversion between different interfaces such as FC, SC, ST, LC, MTRJ, MPO, E2000, etc. It is widely used in optical fiber distribution frames (ODF), optical fiber communication equipment, Instruments, etc., superior performance, stable and reliable.

Chengdu Focus Infra Materials company is manufacturing and trading a wide range of fiber optic passive products. Welcome to contact us for more details.

Specification:

Type		Insertion loss(db)	Tensility resist(g)	Inser and pull times	Temperature(℃)
FC	PC	< 0.2	200-600	1000	-40-+80
FC	APC	< 0.2	200-600	1000	-40-+80
SC	PC	< 0.2	200-600	1000	-40-+80
SC	APC	< 0.2	200-600	1000	-40-+80
ST		< 0.2	200-600	1000	-40-+80
LC		< 0.2	200-600	1000	-40-+80
MU		< 0.2	200-600	1000	-40-+80
MIRJ		< 0.2	200-600	1000	-40-+80
E-2000		< 0.2	200-600	1000	-40-+80
FC-SC		< 0.2	200-600	1000	-40-+80
FC-ST		< 0.3	200-600	1000	-40-+80
SC-ST		< 0.2	200-600	1000	-40-+80

LC UPC Fiber Optic Adapter
