UPC DX Duplex Fiber SC LC Converter OM3 Adapter Fiber Connector LC UPC OM3 DX Fiber Optic Coupler

12 Views

Model Number: OM3
Color: Acid Blue
Use:	FTTH, FTTX, FTTA, CATV, LANs
Flange: With Flange

Get a Quote

Category :

LC Fiber Optic Adapter

Description

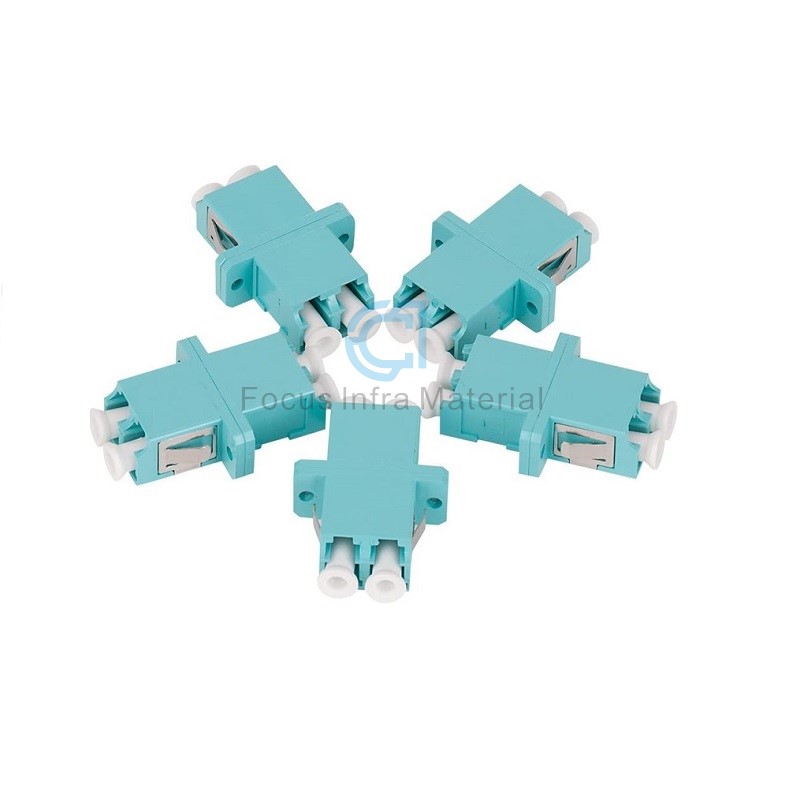

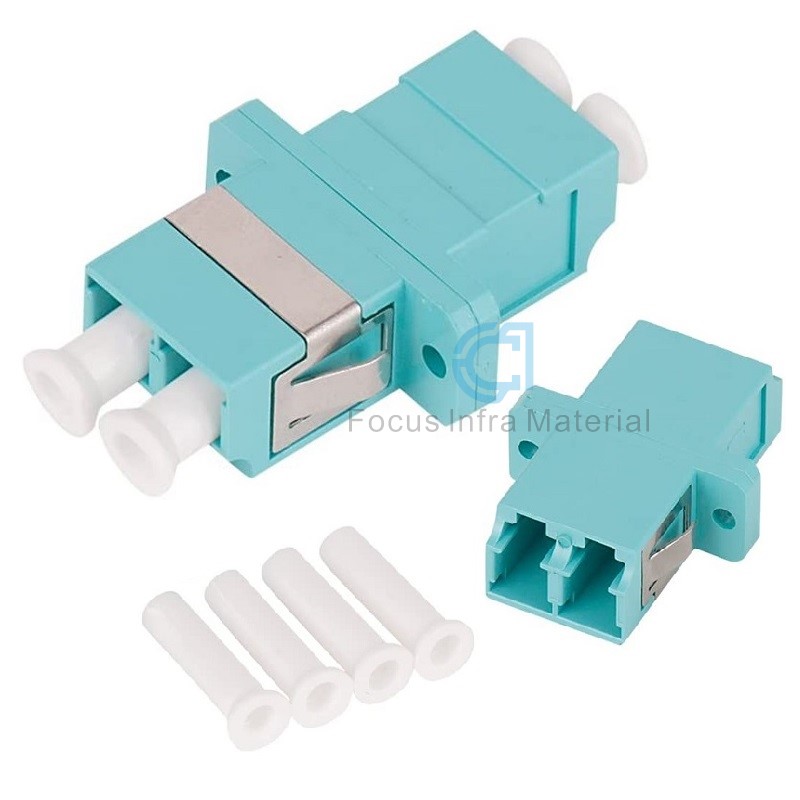

UPC DX Duplex Fiber SC LC Converter OM3 Adapter Fiber Connector

Description:

Focus Infra's fiber optic adapters have a name for its stability ,they provide reliable solution for fiber connections ,single mode fibre optic adaptors and multimode fiber optic adaptors available on request. Focus Infra adopt high quality raw materials and make these fiber optic adapters strictly according to international standard, this makes our fiber optic adaptors fully compartible with the products from other manufacturers' in the market. The "LC" connector is similar in shape to the SC connector, but smaller than the SC connector.

Feature:

1. Fiber optic adapter LC
2. Apply for CATV, LAN, Telecom network, test equipment, LC connectors
3. Multimode or Single Mode, OM3,OM4 available
4. Quad
5. Ceramic sleeve, ABS housing
6. Operating temp.: -40° C~+85° C
7. Standard plugging force: 2~6N
8. Durability > 1000 times
9. Color: Blue (pc/SM), Green (apc), Beige (pc/MM), Acid blue (OM3), Purple(OM4)

Specification:

Type		Insertion loss(db)	Tensility resist(g)	Inser and pull times	Temperature(℃)
FC	PC	< 0.2	200-600	1000	-40-+80
FC	APC	< 0.2	200-600	1000	-40-+80
SC	PC	< 0.2	200-600	1000	-40-+80
SC	APC	< 0.2	200-600	1000	-40-+80
ST		< 0.2	200-600	1000	-40-+80
LC		< 0.2	200-600	1000	-40-+80
MU		< 0.2	200-600	1000	-40-+80
MIRJ		< 0.2	200-600	1000	-40-+80
E-2000		< 0.2	200-600	1000	-40-+80
FC-SC		< 0.2	200-600	1000	-40-+80
FC-ST		< 0.3	200-600	1000	-40-+80
SC-ST		< 0.2	200-600	1000	-40-+80

Fiber Optic Adapter

Optical Distribution Network
